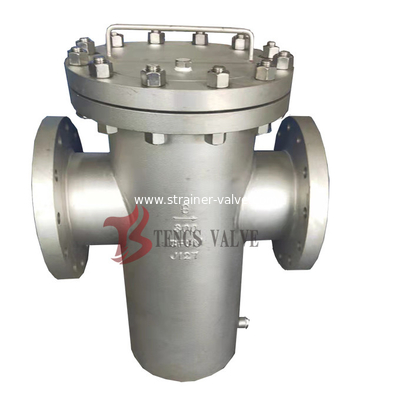

Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter

Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter

Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter
Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter

Large Image :  Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO, CE
Model Number: Basket Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Fob, CNF, CIF
Packaging Details: Sea Worthy Packing, Air Worthy Packing
Delivery Time: 30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 Sets /Month
Detailed Product Description
Port Size: 2in -36in Standard Or Nonstandard: Standard
Pressure: 300LB Screen: SS304, SS316
Material: Stainless Steel 316, 316L Temperature Of Media: Normal Temperature
Media: Water, Oil, Gas Pattern: Bucket, Basket

Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter



The Specifications as Below,

1. Sizes: 2inch - 36inch, Dn50 - Dn900

2. Pressure Rating: ANSI 300LB, CL300

3. Suitable Medium: Water, Gas, Oil, Steam etc.

4. Body Material: 316SS, 316LSS, CF3M, CF8M

5. Screen: Stainless Steel (316LSS, 316SS)

6. Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc

7. End Connection: RF, RTJ



Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter 0



MATERIAL LIST FOR FABRICATED BASKET STRAINER:



No. Part name Material
01 Body WPB 304SS 304L 316SS 316L
02 Screen 304SS,316SS,304LSS,316LSS
03 Gasket Graphite+ stainless steel(304SS, 316SS)
04 cover A105 A182-F304 A182-F304L A182-F316 A182-F316L
05 Bolt A193 B7 A193 B8 A193 B8M
06 Nut A194 2H A194 8 A194 8M
07 Drain pug A193 B7 A193 B8 A193 B8M



Main Connection Dimensions: 300LB



NPS

In

DN

mm

L B D G f K Z-Ød C H
1 25 203 25 124 50.8 1.6 88.9 4-19.1 17.5 120
1-1/4 32 216 32 133 63.5 1.6 98.6 4-19.1 19.1 130
1-1/2 40 229 38 155 73.2 1.6 114.3 4-22.2 20.6 130
2 50 267 49 165 91.9 1.6 127 8-19.1 22.4 150
2 1/2 65 292 62 191 104.6 1.6 149.2 8-22.2 25.4 180
3 80 318 74 210 127 1.6 168.3 8-22.2 28.4 200
4 100 356 100 254 157.2 1.6 200.2 8-22.2 31.8 240
6 150 445 150 318 215.9 1.6 269.8 12-22.2 36.6 370
8 200 533 201 381 269.7 1.6 330.2 12-25.4 41.1 480
10 250 622 252 445 323.9 1.6 387.4 16-28.6 47.8 520
12 300 711 303 521 381 1.6 450.9 16-31.8 50.8 580
14 350 838 334 584 412.8 1.6 514.4 20-31.8 53.8 620
16 400 864 385 648 469.9 1.6 571.5 20-34.9 57.2 750
18 450 978 436 711 533.4 1.6 628.7 24-34.9 60.5 780
20 500 1016 487 775 584.2 1.6 685.8 24-34.9 63.5 -
24 600 1346 589 914 692.2 1.6 812.8 24-41.3 69.9 -











































Simplex Basket Strainer Stainless Steel SS 316L 8 Inch ANSI 300LB Flanged CF3M Bucket Filter 1

For More Information on Fabricated Basket Strainer, Please Contact Us.
