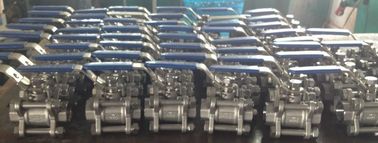

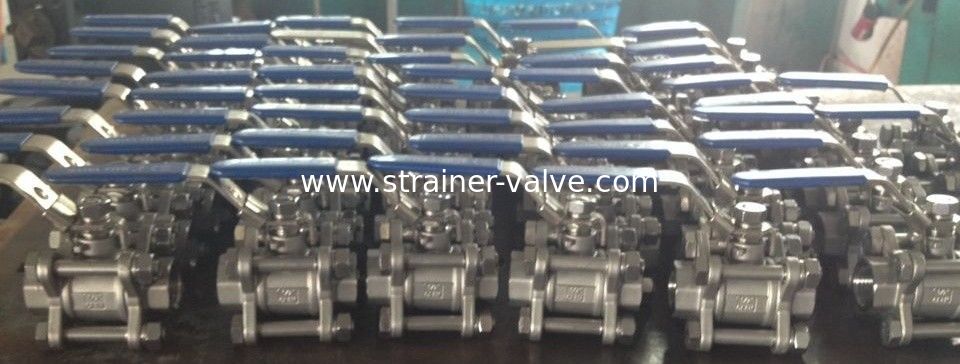

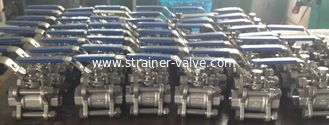

Cast steel high pressure screwed & NPT ends 3pc body ball valve

Cast steel high pressure screwed & NPT ends 3pc body ball valve

Cast steel high pressure screwed & NPT ends 3pc body ball valve
Cast steel high pressure screwed & NPT ends 3pc body ball valve

Large Image :  Cast steel high pressure screwed & NPT ends 3pc body ball valve Get Best Price

Product Details:
Place of Origin: China
Brand Name: Factory or OEM
Certification: ISO
Model Number: Q11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Fob, CNF, CIF
Packaging Details: Sea Worthy packing, Air Worthy packing
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 1000pcs/ Month
Detailed Product Description
Port Size: 1/2-4 Standard Or Nonstandard: Standard
Structure: Ball Pressure: High Pressure
Power: Manual Material: Stainless Steel
Temperature Of Media: Normal Temperature Media: Oil, Gas, Water

3PCS body cast steel A351-CF8M  screwed / NPT ends ball valve



1. Design: API 6D, ANSI B16.34
2. Face to face: API6D, B16.10
3. Connection end: NPT, Threaded
4. Size Range: 1/2" - 4"
5. Pressure Ratings: 1000psi, 2000psi, 3000psi, 5000psi, 10000psi
6. Body materials: A216 WCB, A351-CF8, A351-CF8M, A351-CF3, A351-CF3M
7. Trim: 304SS, 316SS, Duplex stainless steel;
8. Full bore and reduced bore
9. Actuator: Lever



Cast steel high pressure screwed & NPT ends 3pc body ball valve 0
