DIN Standard Stop Valve Flanged Ends Cast Steel Handwheel Globe Valve PN16 - PN40
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | DN50 - DN400 | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Stop | Pressure Rating: | PN16 - PN40 |
| Power: | Manual | Material: | Casting Steel |
| Temperature Of Media: | Normal Temperature | Media: | Water, Oil, Gas |

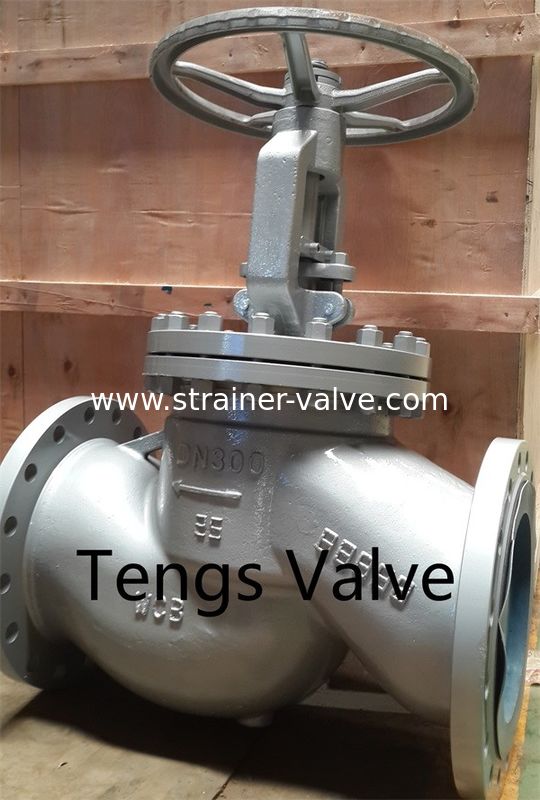

DIN Standard Stop Valve Flanged Ends Cast Steel Handwheel Globe Valve PN16 - PN40
1. Design & Manufacture: GB or DIN
2. OS&Y Construction, Bolted Bonnet
3. Size Range of Globe Valve: DN40 to DN400
4. Pressure Ratings: PN10, PN16, PN25, PN40, PN64, PN100
5. End Connections: Flanged, Butt weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent;
7. Various Trim Materials are Available to Suit Service Conditions
8. Actuator: Manual (Handwheel or Worm Gear)
9. NACE MR 0175
| Design Standard | DIN3356 |
| Face to Face | DIN3202 |
| Flange Ends | DIN2543-2545 |
| Test & Inspection | DIN3230 |
| Nominal Pressure (MPa) | Shell Test (MPa) | Sealing Test(MPa) | Suitable Medium |
| 1.6 | 2.4 | 1.76 | Water, Oil & Gas |
| 2.5 | 3.75 | 2.75 | |
| 4.0 | 6.0 | 4.4 | |
| 6.4 | 9.6 | 7.04 |
Dimensions of Din Globe Valve
|
Pressure (MPa) |
PN 1.6 MPa | |||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
|
Pressure (MPa) |
PN 2.5 MPa | |||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L(mm) | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
|
Pressure (MPa) |
PN 4.0 MPa | |||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
