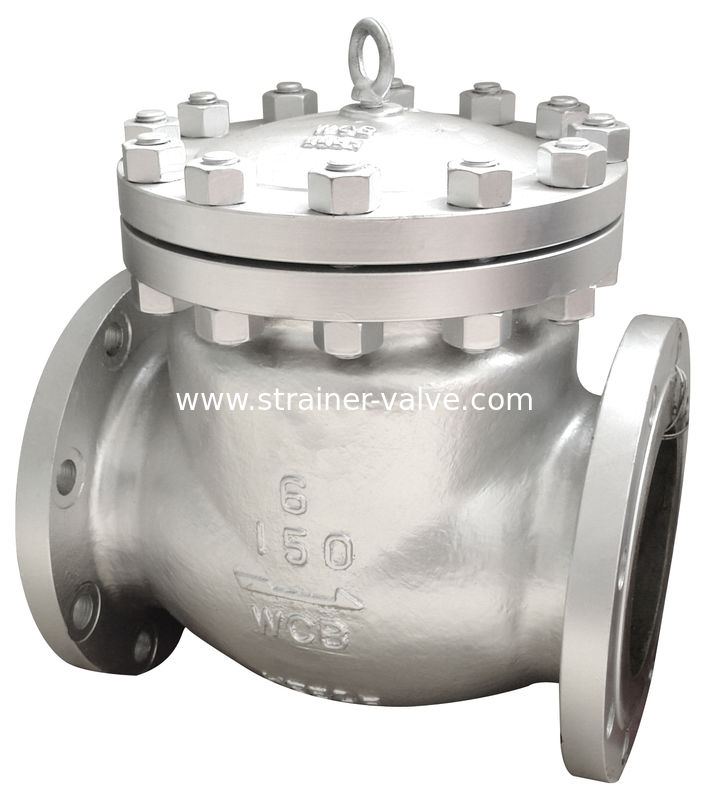

API 6D Cast Steel Flanged Swing Check Valve Class150Lbs

API 6D Cast Steel Flanged Swing Check Valve Class150Lbs

API 6D Cast Steel Flanged Swing Check Valve Class150Lbs
API 6D Cast Steel Flanged Swing Check Valve Class150Lbs

Large Image :  API 6D Cast Steel Flanged Swing Check Valve Class150Lbs Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO, API
Model Number: H44H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: FOB/CNF
Packaging Details: Plywood Case
Delivery Time: 4 Weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 Sets /month
Detailed Product Description
Port Size: 2 - 24 Inch Standard Or Nonstandard: Standard
Structure: Swing Type Pressure: 150LB, CL150
Power: Manual Material: Casting Steel
Temperature Of Media: Normal Temperature Media: Oil, Gas, Water
High Light:

swing check valve

,

non-return valve

,

wcb swing check valve

API 6D Cast Steel Flanged Swing Check Valve Class150Lbs



150LB Swing Check Valve Specifications:

1. Design & Manufacture: API6D, ANSI B16.34, BS1868
2. Cover Type: B.B, Bolted Bonnet

3. Disc Type: Swing Type Disc
4. Size Range: 2" to 24", DN50 - DN600
5. Pressure Ratings: ANSI 150, CL150
6. End Connections: Flanged, RF, FF
7. Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent,

8. Various Trim Materials Available to Suit Service Conditions: trim 1#, 8#, 5#, 10#, 12# etc.
9. NACE MR 0175



API 6D Cast Steel Flanged Swing Check Valve Class150Lbs 0



CAST STEEL SWING CHECK VALVE, NON-RETURN VALVE CLASS 150 DIMENSIONS:

API 6D Cast Steel Flanged Swing Check Valve Class150Lbs 1
