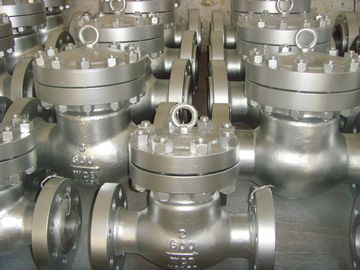

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS
API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS

Large Image :  API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO, API
Model Number: H44H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: FOB/CNF
Packaging Details: Plywood Case
Delivery Time: 4 Weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets /month
Detailed Product Description
Port Size: 2 -24 INCH Standard Or Nonstandard: Standard
Structure: Swing Type Pressure: Medium Pressure
Power: Manual Material: Casting Steel
Temperature Of Media: Normal Temperature Media: Oil, Gas, Water
High Light:

api check valve

,

high pressure check valve

,

bolt type check valve

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS

Swing Check Valve And Non-Return Valve NRV:

1. Design & Manufacture: API6D, ANSI B16.34, BS1868
2. Bolted Bonnet, Swing Type Disc,
3. Size Range: 2" to 24".
4. Pressure Ratings: ANSI 150LB, 300LB, 600LB, 900LB
5. End Connections: Flanged, Butt Weld.
6. Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent,

7. Various Trim Materials Available to Suit Service Conditions;
8. NACE MR 0175

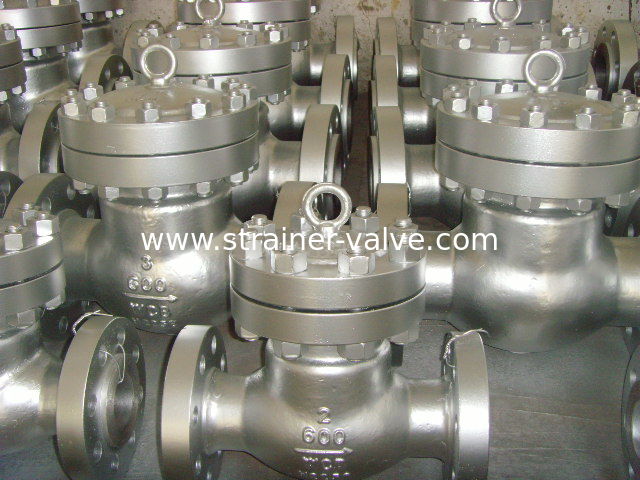

API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS 0

Dimensions for Api Standard Cast Steel Swing Check Valve:



API Standard Cast Steel Swing Check Valve With Eye Bolt Class 150LBS - 900LBS 1

Class 150LBS

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24
L,L1-RF.BW mm 203 216 214 292 330 356 495 622 699 787 864 978 978 1295
L2-RTJ mm 216 229 254 305 343 368 508 635 717 800 876 991 991 1308
H mm 155 190 200 225 245 260 350 390 410 435 530 570 625 675
WT.(approx) Kg 16 25 34 46 75 89 120 220 337 471 575 788 916 1275



Class 300LBS

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24
L,L1-RF.BW mm 267 292 318 355 400 440 533 622 711 838 863 977 1016 1346
L2-RTJ mm 283 308 333 371 416 460 549 638 727 854 879 994 1036 1368
H mm 180 200 225 240 275 310 370 410 440 500 545 605 675 785
WT.(approx) Kg 26 32 53 73 110 157 234 384 450 650 800 970 1350 2210



Class 600LBS

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20
L,L1-RF.BW mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194
L2-RTJ mm 295 333 359 435 511 562 664 791 841 892 994 1095 1200
H mm 190 215 250 260 310 350 420 490 525 580 630 690 810
WT.(approx) Kg 33 49 62 95 120 195 360 465 725 875 1075 1475 1900



Class 900LBS

Size inch 2 2-1/2 3 4 5 6 8 10 12 14
L,L1-RF.BW mm 368 419 381 457 559 610 737 838 965 1029
L2-RTJ mm 371 422 384 460 562 613 740 841 968 1038
H mm 195 235 260 275 320 370 435 520 530 580
WT.(approx) Kg 55 70 90 135 165 295 525 900 1075 1225
