Cast stainless steel bolted cover flanged handwheel globe valve

I'm Online Chat Now

Cast stainless steel bolted cover flanged handwheel globe valve

China Cast stainless steel bolted cover flanged handwheel globe valve supplier

Large Image :  Cast stainless steel bolted cover flanged handwheel globe valve

Product Details:

Place of Origin: China
Brand Name: Factory or OEM
Certification: ISO
Model Number: J40H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB/CNF
Packaging Details: Plywood case
Delivery Time: 4 weeks
Payment Terms: T/T
Supply Ability: 100 sets /month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Port Size: 2-18 Standard Or Nonstandard: Standard
Structure: Stop Pressure: Medium Pressure
Power: Manual Material: Stainless Steel
Temperature Of Media: High Temperature Media: OIL,GAS,WATER

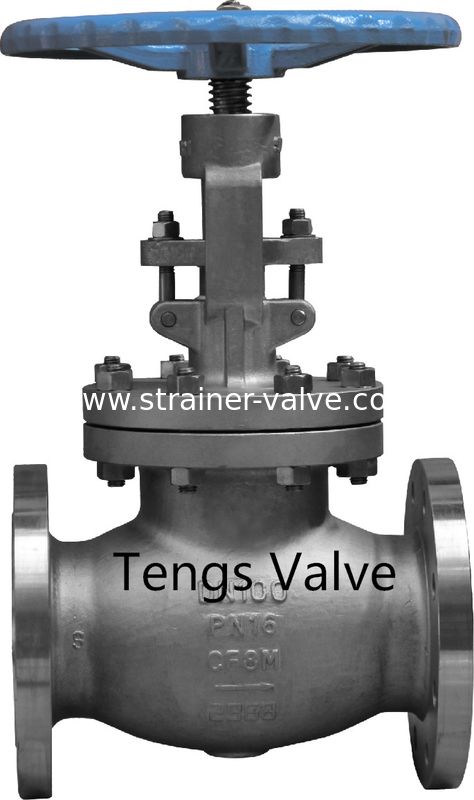

Cast stainless steel bolted cover flanged handwheel globe valve



1. Design & Manufacture: ANSI B16.34, BS 1873
2. OS&Y Construction, Bolted Bonnet
3. Size Range of Globe Valve: 2" to 18"
4. Pressure Ratings: ANSI 150, 300, 600, 900, 1500LBS;
5. End Connections: Flanged, Butt weld
6. Materials Available in: Cast stainless steel:  CF8, CF8M, CF3, CF3M, Duplex stainless steel;

                                        Cast carbon steel: WCB, LCB, WC6, WC9, C5, C12 or Equivalent;

7. Various trim materials are available to suit service conditions
8. Actuator: Manual, gear worm etc;
9. NACE MR 0175 on Request



Cast stainless steel bolted cover flanged handwheel globe valve

DIMENSIONS FOR GLOBE VALVES:



Class 150LBS

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18
L,L1-RF,BW mm 203 216 241 292 356 406 495 622 698 787 914 978
L2-RTJ mm 216 229 254 305 368 419 508 635 711 800 927 991
H mm 330 390 410 475 540 585 725 825 940 1200 1270 1300
WT Kg 23 29 40 59 95 115 178 268 385 540 760 1050



Class 300LBS

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16
L,L1-RF,BW mm 267 292 318 356 400 444 559 622 711 838 863
L2-RTJ mm 283 308 333 371 416 460 575 638 727 854 879
H mm 350 425 485 520 565 655 825 920 1155 1250 1295
WT Kg 30 45 60 83 135 162 265 375 525 765 1100



Class 600LBS

Size inch 2 2-1/2 3 4 5 6 8 10
L,L1-RF,BW mm 292 330 356 432 508 559 660 787
L2-RTJ mm 295 333 359 435 511 562 664 791
H mm 420 490 550 590 620 700 950 1140
WT Kg 39 61 76 122 210 245 447 692



Class 900LBS

Size inch 2 2-1/2 3 4 5 6 8
L,L1-RF,BW mm 368 419 381 457 559 610 737
L2-RTJ mm 371 422 384 460 562 613 740
H mm 495 540 600 655 670 780 1050
WT Kg 96 79 117 178 305 355 730



Class 1500LBS

Size inch 2 2-1/2 3 4 6
L,L1-RF,BW mm 368 419 470 546 705
L2-RTJ mm 371 422 473 549 711
H mm 550 580 625 750 925
WT Kg 116 125 145 210 475
