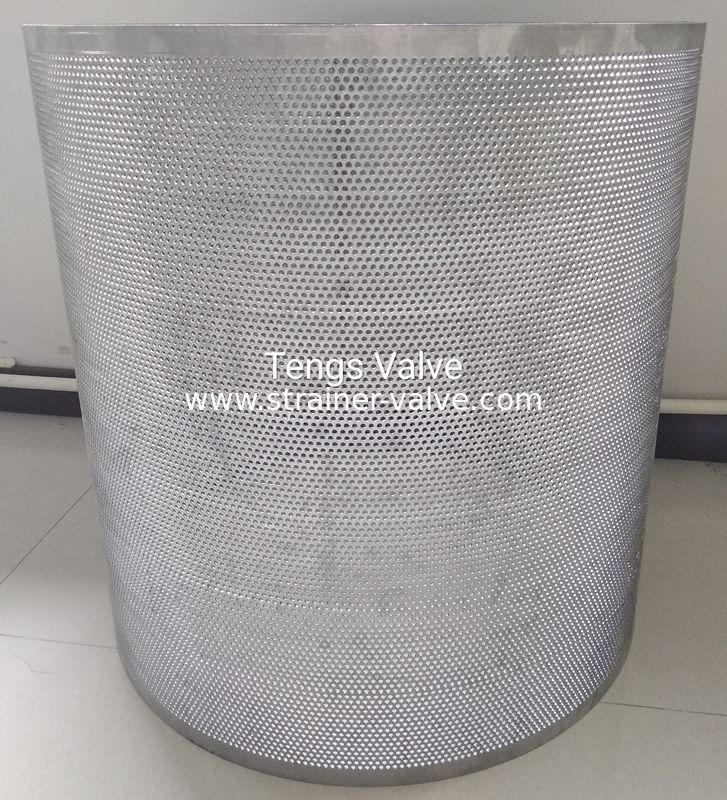

Super Duplex Stainless Steel Cylinder Basket Screen – S32750 / 2507 / F53 for Y Strainer

Tengs Valve supplies super duplex stainless steel cylinder basket screens and strainer elements for Y type strainers, basket strainers and T type strainers. Screen material is A240 S32750 (UNS S32750, 2507, F53) super duplex stainless steel, with other material options including SS304, SS316, SS316L, Duplex 2205 and Super Duplex 2507. Sizes range from 1" to 36" (DN25–DN900). Pressure ratings cover ANSI Class 150LB to 1500LB and DIN PN10 to PN100. Perforated hole sizes include 2mm, 3mm and 5mm. Custom-made sizes and materials are available on request.

Super Duplex Cylinder Basket Screen Specifications

• Product Type: Cylinder Basket Screen, Strainer Element, Replacement Screen
• Compatible Strainer: Y Type Strainer, Basket Strainer, T Type Strainer
• Size Range: 1"–36" (DN25–DN900)
• Pressure Rating: ANSI Class 150LB, 300LB, 600LB, 900LB, 1500LB; DIN PN10, PN16, PN25, PN40, PN64, PN100
• Screen Material: Super Duplex A240 S32750, 2507, F53
• Other Materials: Duplex Steel, Super Duplex Steel, SS304, SS316, SS304L, SS316L
• Perforated Hole Size: 2mm, 3mm, 5mm or equivalent
• Customization: Custom-made available

Pressure Rating Reference

Material Options for Y Strainer Screen

• Super Duplex Steel: A240 S32750, 2507, F53
• Duplex Steel: UNS S31803 (2205)
• Stainless Steel: SS304, SS316
• Stainless Steel: SS304L, SS316L

Main Parts & Material List

Why Choose Super Duplex 2507 Cylinder Basket Screen?

Super duplex stainless steel UNS S32750 (2507, F53) offers higher resistance to chloride stress corrosion cracking and pitting corrosion than standard SS304 or SS316, making it suitable for seawater, offshore and chemical service. As a replacement screen or strainer element, it can be fitted into existing Y type strainers, basket strainers and T type strainers to extend service life in corrosive environments. The cylinder basket design provides a large filtration surface, and the perforated hole size and mesh can be customized to match the original strainer specification.

Applications

• Seawater and desalination systems
• Offshore and marine pipelines
• Oil & gas production with corrosive media
• Chemical and petrochemical plants
• Replacement screens for Y type strainers
• Replacement baskets for basket strainers
• Replacement elements for T type strainers

Other sizes, materials and perforated hole sizes are available on request. For more information on super duplex cylinder basket screens, please contact us.
