DIN Standard PN25 Flange Ends Cast Steel Manual Rising Stem Gate Valve

Large Image : DIN Standard PN25 Flange Ends Cast Steel Manual Rising Stem Gate Valve Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Tengs or OEM
Certification:	ISO, API
Model Number:	Z41

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Fob, CNF, CIF
Packaging Details:	Sea Worthy packing, Air Worthy packing
Delivery Time:	30 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	150 Sets/ Month

Contact Now

Detailed Product Description

Port Size:	DN50 - DN600	Standard Or Nonstandard:	Standard
Structure:	Gate	Pressure:	Medium Pressure
Power:	Manual	Material:	Carbon Steel, Alloy Steel, Stainless Steel
Temperature Of Media:	Normal Temperature	Media:	Water, Oil, Gas

DIN Standard PN25 Flange Ends Cast Steel Manual Rising Stem Gate Valve

1. Design & Manufacture: GB or DIN 3202
2. OS&Y, Bolted Bonnet, Solid or Flexible Wedge Design
3. Size Range: DN50 to DN600
4. Pressure Ratings: PN10, PN16, PN25, PN40, PN64, PN100
5. End Connections: Flanged, Butt weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent

7. Various trim materials are available to suit different service conditions
8. Actuator: Manual, Electric Actuator

MATERIAL LIST FOR DIN STANDARD GATE VALVE:

Parts Name	Carbon Steel		Alloy Steel			Stainless Steel
Body	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5		A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
Bonnet	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5		A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
Bolts	A193 B7	A320 L7	A193 B16	A193 B16	A193 B16		A 193 B8	A 193 B8	A 193 B8	A 193 B8
Nuts	A194 2H	A194 4	A194 4	A194 4	A194 4		A194 8	A194 8	A194 8	A194 8
Gland	A182 F6a	A182 F6a	A182 F6a	A182 F6a	A182 F6a		A182F304	A182 F316	A182 F304L	A182 F316L
Gland Flange	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5		A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
Disc	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5		A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
Gasket	SS304+graphite, SS316+graphite, PTFE
Packing	Graphite
Stem Nut	A439 D2
Hand Wheel	Ductile Iron

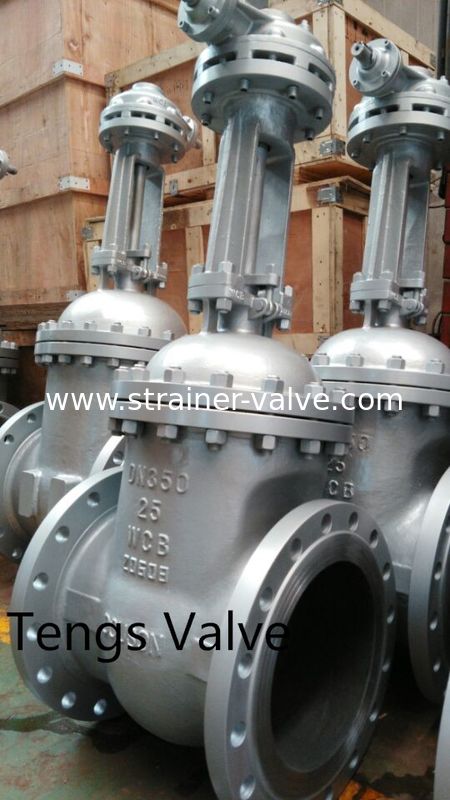

DIN Standard PN25 Flange Ends Cast Steel Manual Rising Stem Gate Valve 0

PN2.5MPa DIN3202-F5
Size (mm)	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L-RF	250	270	280	300	325	350	400	450	500	550	600	650	700	800
W	200	280	280	300	350	350	400	450	500	600	600	650	700	800
