Cast Steel WCB Metal Seated Gate Valve 6inch 300LB Flanged Manual Valves DN150mm PN50

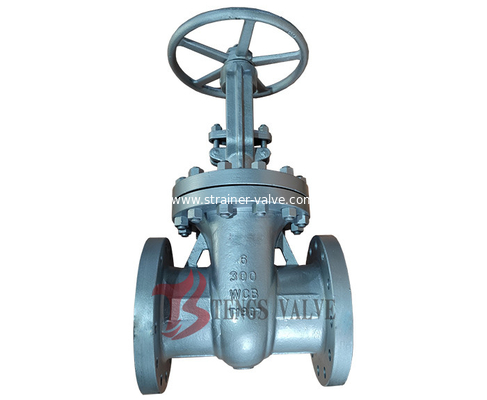

Large Image : Cast Steel WCB Metal Seated Gate Valve 6inch 300LB Flanged Manual Valves DN150mm PN50 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Tengs or OEM
Certification:	ISO, CE, API
Model Number:	Z40H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	FOB/CNF/CIF
Packaging Details:	Plywood Case
Delivery Time:	4 Weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200 Sets /month

Contact Now

Detailed Product Description

Valve Size:	6 INCH, DN150	Standard Or Nonstandard:	Standard
Structure:	Gate	Pressure Rating:	300LB, CL300
Power:	Manual Handwheel	Material:	Carbon Steel WCB
Temperature Of Media:	Normal Temperature	Media:	Oil, Gas, Water

A216 WCB DN150 Cast Steel Metal Seated Wedge Gate Valve 6in ANSI 300LBS PN50

1. Design & Manufacture: ANSI B16.34, API 600, API6D
2. OS&Y, Bolted Bonnet, Flexible Wedge Design
3. Valve Size: 6", Dn150
4. Pressure Ratings: ANSI 300, CL300, PN50
5. End Connections: Flanged, RF
6. Valve Materials: Carbon Steel A216 WCB

7. Valve Trim Materials: 13CR, Half Stellite, Full Stellite
8. Actuator: Manual, Handwheel
9. NACE MR 0175

ANSI GATE VALVE MATERIAL LIST

Cast Steel WCB Metal Seated Gate Valve 6inch 300LB Flanged Manual Valves DN150mm PN50 0

Parts No.	Parts Name	Materials
Parts No.	Parts Name	WCB/Trim 1	WCB/Trim 5	WCB/Trim 8
1	Body	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB
2	Gasket	Sofl Iron + Graphite or 304 + Graphite
3	Seat Ring	A105+ 13Cr	A105 + STL	A105 + STL
4	Gate	ASTM A216 WCB+ 13CR	ASTM A216 WCB +STL	ASTM A216 WCB + 13CR
b	Stem	ASTMA182F6a	ASTM A182F6a	ASTM A182F6a
6	Backseat Bushing	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a
7	Packing	Giaphie	Graphite	Graphite
8	Gland	ASTM A182 F6a	ASTM A182F6a	ASTM A182F6a
9	Gland Eyebolt	ASTMA193 B7	ASTMA193 B7	ASTM A193 B7
10	Eyebolt Nut	ASTMA194 2H	ASTM A194 2H	ASTM A194 2H
11	Eyebolt Pin	ASTM A36	ASTM A36	ASTM A36
12	Gland Flange	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB
13	Bonnet Bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7
14	Bonnet Nut	ASTM A194 2H	ASTM A194 2H	ASTMA194 2H
15	Bonnet	ASTM A216WCB	ASTM A216 WCB	ASTM A216 WCB
16	Nipple	Carbon steel	Carbon steel	Carbon steel
17	Stem nut	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2
18	Yoke Sleeve Nut	Carbon steel	Carbon steel	Carbon steel
19	Hand Wheel	Ductile Iron	Ductile Iron	Ductile Iron
20	Hand Wheel Nut	Carbon steel	Carbon steel	Carbon steel
21	Set Screw	ASTMA193 B7	ASTMA193 B7	ASTM A193 B7
