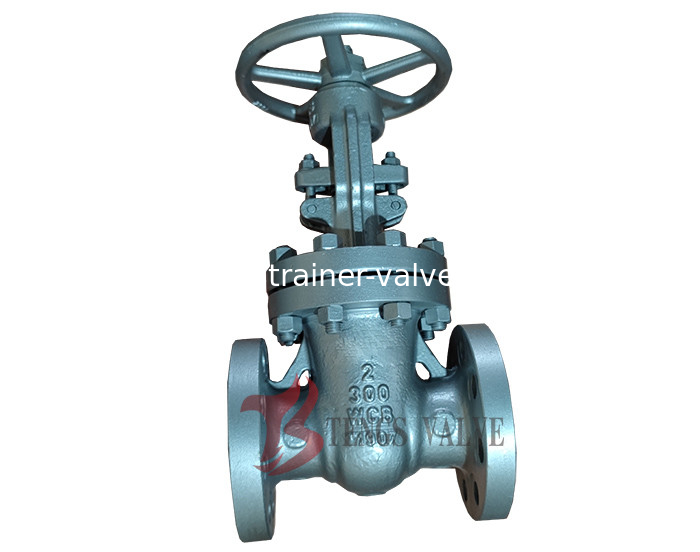

Ansi 300LB Cast Steel Flexible Wedge Gate Valve 2inch Flanged Manual Valve PN50
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Valve Size: | 2 INCH, DN50 | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Gate | Pressure Rating: | 300LB, CL300 |
| Power: | Manual | Material: | Carbon Steel WCB |
| Temperature Of Media: | Normal Temperature | Media: | Oil, Gas, Water |
API Cast Steel Flanged Flexible Wedge Gate Valve DN50 ANSI 300LBS PN50
1. Design & Manufacture: ANSI B16.34, API 600, API6D
2. OS&Y, Bolted Bonnet, Flexible Wedge Design
3. Valve Size: 2", Dn50
4. Pressure Ratings: ANSI 300, CL300, PN50
5. End Connections: Flanged, RF
6. Valve Materials: Carbon Steel A216 WCB
7. Valve Trim Materials: 13CR, Half Stellite, Full Stellite
8. Actuator: Manual, Handwheel, Gear Bevel
9. NACE MR 0175
ANSI GATE VALVE MATERIAL LIST
INDUSTRIAL GATE VALVE 300LB DIMENSIONS:
