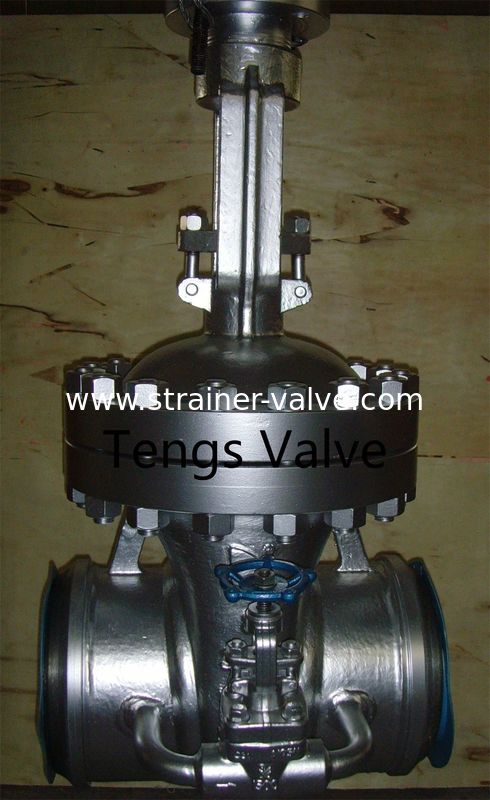

Cast Steel BW Ends Bypass Design Manual Gate Valve

Cast Steel BW Ends Bypass Design Manual Gate Valve

Cast Steel BW Ends Bypass Design Manual Gate Valve
Cast Steel BW Ends Bypass Design Manual Gate Valve

Large Image :  Cast Steel BW Ends Bypass Design Manual Gate Valve Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO
Model Number: Z41
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Fob, CNF, CIF
Packaging Details: Sea Worthy Packing, Air Worthy Packing
Delivery Time: 30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 Sets/ Month
Detailed Product Description
Port Size: 2 -24 INCH Standard Or Nonstandard: Standard
Structure: Gate Pressure: High Pressure
Power: Manual Material: Casting Steel
Temperature Of Media: Normal Temperature Media: Oil, Gas, Water

Cast Steel BW Ends Bypass Design Manual Gate Valve



1. Design & Manufacture: ANSI B16.34, API 600, API6D
2. OS&Y, Bolted Bonnet, Solid or Flexible Wedge Design
3. Size Range: 2" to 36"
4. Pressure Ratings: ANSI 300LB, 600LB, 900LB, 1500LB
5. End Connections: Flanged, Butt Weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent

7. Various Trim Materials are Available to Suit Different Service Conditions
8. Actuator: Manual, Bare Stem
9. NACE MR 0175



Gate Valve Material List:

Parts Name Carbon Steel Alloy Steel Stainless Steel
Body A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Bonnet A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Bolts A193 B7 A320 L7 A193 B16 A193 B16 A193 B16 A 193 B8 A 193 B8 A 193 B8 A 193 B8
Nuts A194 2H A194 4 A194 4 A194 4 A194 4 A194 8 A194 8 A194 8 A194 8
Gland A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a A182F304 A182 F316 A182 F304L A182 F316L
Gland Flange A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Disc A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Gasket SS304+graphite, SS316+graphite, PTFE
Packing Graphite
Stem Nut A439 D2
Hand Wheel Ductile Iron





Cast Steel BW Ends Bypass Design Manual Gate Valve 0
