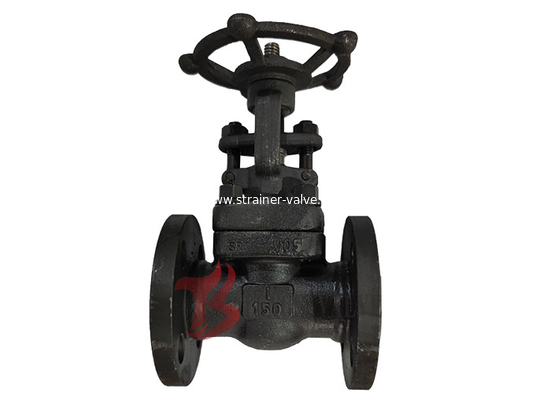

1inch A105 Steel Gate Valve API602 Forged Carbon Steel Valve Flanged to Class 150
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | 1 Inch | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Gate | Pressure: | Class 150LB |
| Power: | Manual | Material: | Forged Steel |
| Temperature Of Media: | Normal Temperature | Media: | OIL, GAS, WATER |
A105 Flanged Gate Valve 1inch 150LB Forged Carbon Steel Valves
1. Design & Manufacture: API 602
2. Constructions: OS&Y, Bolted Bonnet
3. Full Port
4. Valve Size: 1inch, Dn25
5. Pressure Ratings: ANSI CL150
6. End Connections: Flanged, RF
7. Valve Materials: Carbon Steel A105
8. Valve Trim Materials: 13CR, Half Stellite, Full Stellite, SS304, SS316 etc.
9. NACE MR 0175 on request
10.Test and Inspection: API598
Main Material List of Gate Valves:
| NO. | Part name | A105/F6a | A105/F6aHFS | LF2/304 |
| 1 | Body | A105 | A105 | LF2 |
| 2 | Seat | 410 | 410HF | 304 |
| 3 | Wedge | F6a | F6a | F304 |
| 4 | Stem | 410 | 410 | 304 |
| 5 | Gasket | 304+ Flexible graphite | ||
| 6 | Bonnet | A105 | A105 | LF2 |
| 7 | Bolt | B7 | B7 | F7 |
| 8 | Pin | 410 | 410 | 410 |
| g | Gland | 410 | 410 | 410 |
| 10 | Gland eyebolt | B7 | B7 | L7 |
| 11 | Gland flange | A105 | A1O5 | LF2 |
| 12 | Hex nut | 2H | 2H | 2H |
| 13 | Stem nut | 410 | 410 | 410 |
| 14 | Locking nut | 35 | 35 | 35 |
| 15 | Namoplate | AL | AL | AL |
| 16 | Hand wheel | A197 | A197 | A197 |
| 17 | Lubricating gasket | 410 | 410 | 410 |
| 18 | Packing | Graphite | Graphite | Graphite |
