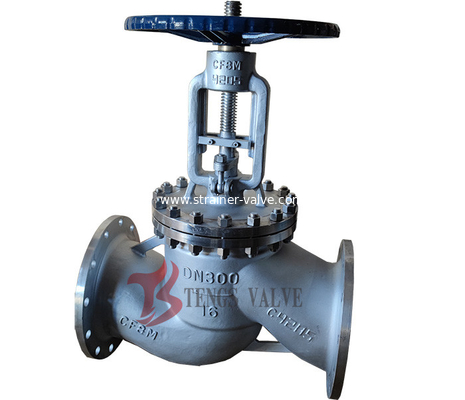

Dn300 Cast Stainless Steel SS316 A351 CF8M Flanged Globe Valve 12inch Din PN16 Suitable Sea Water
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | DN300 | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Stop | Pressure Rating: | PN16 |
| Power: | Manual | Material: | A351 CF8M |
| Temperature Of Media: | Normal Temperature | Media: | Water, Sea Water |
DIN PN16 Cast Steel SS316 Stop Valve Flanged Ends A351 CF8M Handwheel Globe Valves
1. Valve name: Pn16 SS316 Globe Valve
2. Design & Manufacture: DIN
3. OS&Y Construction, Bolted Bonnet
4. Size of Globe Valve: DN300
5. Pressure Ratings: PN16, 1.6MPa
6. End Connections: Flanged, RF
7. Body Materials: Stainless Steel A351 CF8M / SS316
8. Valve Trim Materials: SS316
9. Actuator: Manual (Handwheel or Worm Gear)
10. NACE MR 0175
| Design Standard | DIN3356 |
| Face to Face | DIN3202 |
| Flange Ends | DIN2543-2545 |
| Test & Inspection | DIN3230 |
| Nominal Pressure (MPa) | Shell Test (MPa) | Sealing Test(MPa) | Suitable Medium |
| 1.6 | 2.4 | 1.76 | Water, Oil & Gas |
| 2.5 | 3.75 | 2.75 | |
| 4.0 | 6.0 | 4.4 | |
| 6.4 | 9.6 | 7.04 |
Dimensions of Din Globe Valve
|
Pressure (MPa) |
PN 1.6 MPa | |||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
|
Pressure (MPa) |
PN 2.5 MPa | |||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L(mm) | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
