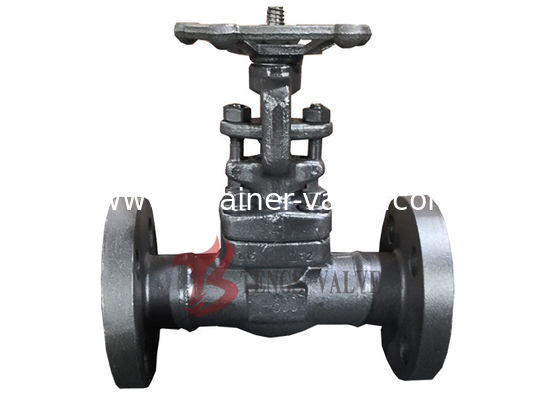

LF2 Forged Steel Gate Valve Flanged 600LB 1IN Api Manual Handwheel Gate Valves
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | 1/2-2 Inch | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Gate | Pressure: | Middle, High Pressure |
| Power: | Manual | Material: | Forged |
| Temperature Of Media: | Normal Temperature | Media: | OIL,GAS,WATER |
LF2 Flanged RF Gate Valve, Forged Low Temperature Carbon Steel Api Manual Handwheel Gate Valves
Forged Steel Flanged Gate Valve 600LB Both for Welded Flanges and Integral Flanges
1. Design & Manufacture: API 602
2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
3. Full Port
4. Size Range: 1/2" to 2".
5. Pressure Ratings: ANSI 600LB
6. End Connections: Flanged, RF, RTJ
7. Materials Available in: Low Temperature Carbon Steel, LF2
8. Various Trim Materials: 13CR, Half Stellite, Full Stellite, SS304, SS316 etc.
9. NACE MR 0175 on request
10.Test and Inspection: API598
Main Material List of Gate Valves:
| NO. | Part name | LF2/F6a | LF2/F6aHFS | LF2/304 |
| 1 | Body | LF2 | LF2 | LF2 |
| 2 | Seat | 410 | 410HF | 304 |
| 3 | Wedge | F6a | F6a | F304 |
| 4 | Stem | 410 | 410 | 304 |
| 5 | Gasket | 304+ Flexible graphite | ||
| 6 | Bonnet | LF2 | LF2 | LF2 |
| 7 | Bolt | B7 | B7 | F7 |
| 8 | Pin | 410 | 410 | 410 |
| g | Gland | 410 | 410 | 410 |
| 10 | Gland eyebolt | B7 | B7 | L7 |
| 11 | Gland flange | LF2 | LF2 | LF2 |
| 12 | Hex nut | 2H | 2H | 2H |
| 13 | Stem nut | 410 | 410 | 410 |
| 14 | Locking nut | 35 | 35 | 35 |
| 15 | Namoplate | AL | AL | AL |
| 16 | Hand wheel | A197 | A197 | A197 |
| 17 | Lubricating gasket | 410 | 410 | 410 |
| 18 | Packing | Graphite | Graphite | Graphite |
