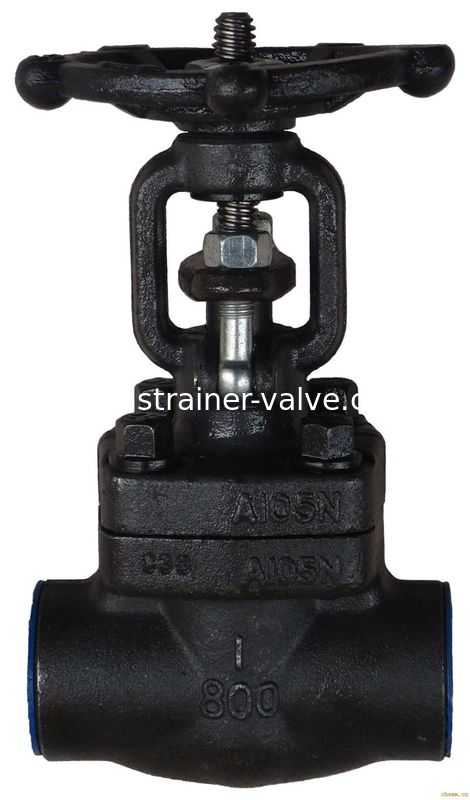

ANSI Forged Steel Gate Valve, Sw Ends Handhwheel Forged Gate Valves

Large Image : ANSI Forged Steel Gate Valve, Sw Ends Handhwheel Forged Gate Valves Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Tengs or OEM
Certification:	ISO, CE, API
Model Number:	Z11

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	FOB/CNF
Packaging Details:	Plywood Case
Delivery Time:	2 Weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	300 sets /month

Contact Now

Detailed Product Description

Port Size:	1/2-2	Standard Or Nonstandard:	Standard
Structure:	Gate	Pressure:	High Pressure
Power:	Manual	Material:	Forged
Temperature Of Media:	Medium Temperature	Media:	OIL,GAS,WATER
High Light:	sw gate valve , high pressure gate valve , forge steel gate valve

ANSI Forged Steel Gate Valve, Sw Ends Handhwheel Forged Gate Valves

1. Design & Manufacture: API 602
2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
3. Full Port /Reduced Port
4. Size Range: 1/2" to 2".
5. Pressure Ratings: ANSI 800#, 900#, 1500# & 2500#
6. End Connections: SW, Socket Weld.
7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent;

8. Various Trim Materials are Available to Suit Different Service Conditions
9. NACE MR 0175 on request

10.Test and Inspection: API598

Main Material List of Gate Valves:

NO.	Part name	A105/F6a	A105/F6aHFS	LF2/304	F11/F6aHF
1	Body	A105	A105	LF2	F11
2	Seat	410	410HF	304	410HF
3	Wedge	F6a	F6a	F304	F6aHF
4	Stem	410	410	304	410
5	Gasket	304+ Flexible graphite
6	Bonnet	A105	A105	LF2	F11
7	Bolt	B7	B7	F7	B16
8	Pin	410	410	410	410
g	Gland	410	410	410	410
10	Gland eyebolt	B7	B7	L7	B16
11	Gland flange	A105	A1O5	LF2	F11
12	Hex nut	2H	2H	2H	2H
13	Stem nut	410	410	410	410
14	Locking nut	35	35	35	35
15	Namoplate	AL	AL	AL	AL
16	Hand wheel	A197	A197	A197	A197
17	Lubricating gasket	410	410	410	410
18	Packing	Graphite	Graphite	Graphite	Graphite
