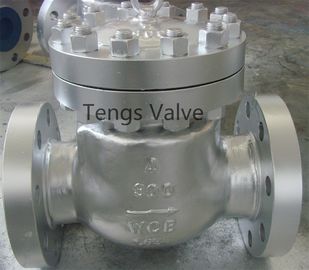

API 6D Cast Steel Flanged Ends Bolted Cover Swing Check Valve Non-Return Valve Class 900Lbs
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | 2 -24 INCH | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Swing Type | Pressure: | 900LB, 900# |
| Power: | Manual | Material: | Casting Steel |
| Temperature Of Media: | Normal Temperature | Media: | Oil, Gas, Water |
API 6D Cast Steel Flanged Ends Bolted Cover Swing Check Valve Non-Return Valve Class 900Lbs
1. Design & Manufacture: API6D, ANSI B16.34, BS1868
2. Bolted Bonnet, Swing Type Disc,
3. Size Range: 2" to 24".
4. Pressure Ratings: ANSI 900LBS, 900#
5. End Connections: Flanged, Butt Weld.
6. Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent,
7. Trim Materials: trim 1#, 8#, 5#, 10#, 12#, SS304, SS316 etc.
8. NACE MR 0175
9. OEM
CAST STEEL SWING CHECK VALVE, NON-RETURN VALVE CLASS 900 DIMENSIONS:
