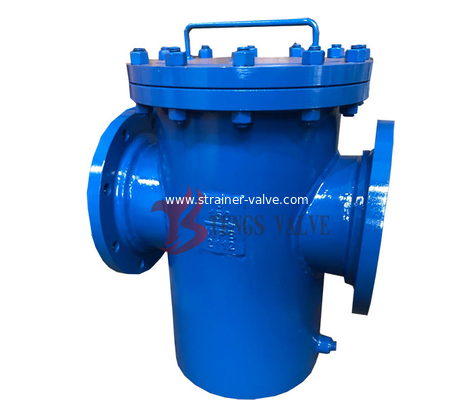

Basket Type Strainer CS Carbon Steel WPB Basket Filter ANSI 150LB Flanged RF Ends Suitable for Pump
The Specifications as Below,
1. Sizes: 2inch - 36inch, Dn50 - Dn900
2. Pressure Rating: ANSI 150LB, 300LB, 600LB
3. Suitable Medium: Water, Gas, Oil, Steam etc.
4. Body material: WPB, A106, 304SS, 316SS etc. (Carbon Steel & Stainless Steel)
5. Screen: Stainless Steel (304SS, 316SS)
6. Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc
7. End Connection: RF, RTJ
MATERIAL LIST FOR FABRICATED BASKET STRAINER:
| No. | Part name | Material | ||||
| 01 | Body | WPB | 304SS | 304L | 316SS | 316L |
| 02 | Screen | 304SS,316SS,304LSS,316LSS | ||||
| 03 | Gasket | Graphite+ stainless steel(304SS, 316SS) | ||||
| 04 | cover | A105 | A182-F304 | A182-F304L | A182-F316 | A182-F316L |
| 05 | Bolt | A193 B7 | A193 B8 | A193 B8M | ||
| 06 | Nut | A194 2H | A194 8 | A194 8M | ||
| 07 | Drain pug | A193 B7 | A193 B8 | A193 B8M | ||
Main Connection Dimensions: 150LB
|
NPS In |
DN mm |
L | B | D | G | f | K | Z-Ød | C | H |
| 1/2 | 15 | 203 | 13 | 89 | 35.1 | 1.6 | 60.3 | 4-15.9 | 9.7 | 120 |
| 3/4 | 20 | 203 | 19 | 99 | 42.9 | 1.6 | 69.9 | 4-15.9 | 10.4 | 120 |
| 1 | 25 | 203 | 25 | 108 | 50.8 | 1.6 | 79.3 | 4-15.9 | 11.2 | 120 |
| 1-1/4 | 32 | 203 | 32 | 117 | 63.5 | 1.6 | 88.9 | 4-15.9 | 12.7 | 130 |
| 1-1/2 | 40 | 203 | 38 | 127 | 73.2 | 1.6 | 98.6 | 4-15.9 | 14.2 | 130 |
| 2 | 50 | 203 | 49 | 152 | 91.9 | 1.6 | 120.7 | 4-19.1 | 15.8 | 150 |
| 2 1/2 | 65 | 216 | 62 | 178 | 104.6 | 1.6 | 139.7 | 4-19.1 | 17.5 | 180 |
| 3 | 80 | 241 | 74 | 191 | 127 | 1.6 | 152.4 | 4-19.1 | 19.1 | 200 |
| 4 | 100 | 292 | 100 | 229 | 157.2 | 1.6 | 190.5 | 8-19.1 | 23.9 | 240 |
| 6 | 150 | 406 | 150 | 279 | 215.9 | 1.6 | 241.3 | 8-22.2 | 25.4 | 370 |
| 8 | 200 | 495 | 201 | 343 | 269.7 | 1.6 | 298.5 | 8-22.2 | 28.4 | 480 |
| 10 | 250 | 622 | 252 | 406 | 323.9 | 1.6 | 362 | 12-25.4 | 30.2 | 520 |
| 12 | 300 | 699 | 303 | 483 | 381 | 1.6 | 431.8 | 12-25.4 | 31.8 | 580 |
| 14 | 350 | 787 | 334 | 533 | 412.8 | 1.6 | 476.2 | 12-28.6 | 35.1 | 620 |
| 16 | 400 | 864 | 385 | 597 | 469.9 | 1.6 | 539.8 | 16-28.6 | 36.6 | 750 |
| 18 | 450 | 978 | 436 | 635 | 533.4 | 1.6 | 577.9 | 16-31.8 | 39.6 | 780 |
| 20 | 500 | 978 | 487 | 699 | 584.2 | 1.6 | 635 | 20-31.8 | 42.9 | - |
| 24 | 600 | 1295 | 589 | 813 | 692.2 | 1.6 | 749.3 | 20-34.9 | 47.8 | - |
For more information on Fabricated Basket Strainer, please contact us.
