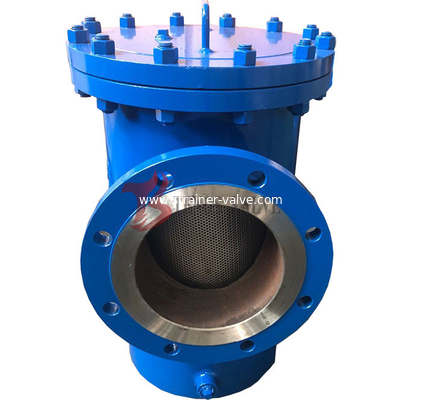

Steel Basket Filter Simplex Type 150LB CS WPB Flanged to PN20 304SS Basket Fabricated Strainers
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | 2in -36in | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Pressure Rating: | 150LB, 2.0MPa, PN20 | Basket: | SS304, SS316 |
| Material: | Carbon Steel, WPB | Temperature Of Media: | Normal Temperature |
| Media: | Water, Oil, Gas | Pattern: | Bucket, Basket |
Simplex Basket Strainer – Carbon Steel WPB & Stainless Steel, 150LB / PN20, Flanged
Tengs Valve supplies fabricated simplex basket strainers (steel basket filters) in carbon steel and stainless steel. Sizes range from 2" to 36" (DN50–DN900). Pressure ratings include ANSI Class 150 LB, 2.0 MPa and PN20. Body materials include WPB, A106, 304SS and 316SS. Basket / screen materials include 304SS and 316SS. End connections include RF and RTJ. Suitable for water, gas, oil and steam service.
Simplex Basket Strainer Specifications
- Size Range: 2"–36" (DN50–DN900)
- Pressure Rating: ANSI 150 LB, 2.0 MPa, PN20
- Suitable Medium: Water, Gas, Oil, Steam
- Body Material: WPB, A106, 304SS, 316SS (Carbon Steel & Stainless Steel)
- Basket / Screen Material: Stainless Steel (304SS, 316SS)
- Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
- End Connection: RF, RTJ
- Body Structure: Fabricated / Welded Type
Material List for Fabricated Basket Strainer / Filter
| No. | Part Name | Material |
|---|---|---|
| 01 | Body | WPB, 304SS, 304L, 316SS, 316L |
| 02 | Screen | 304SS, 316SS, 304LSS, 316LSS |
| 03 | Gasket | Graphite + Stainless Steel (304SS, 316SS) |
| 04 | Cover | A105, A182-F304, A182-F304L, A182-F316, A182-F316L |
| 05 | Bolt | A193 B7, A193 B8, A193 B8M |
| 06 | Nut | A194 2H, A194 8, A194 8M |
| 07 | Drain Plug | A193 B7, A193 B8, A193 B8M |
Main Connection Dimensions: Class 150 (mm)
| NPS (in) | DN (mm) | L | B | D | G | f | K | Z-Ød | C | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 203 | 13 | 89 | 35.1 | 1.6 | 60.3 | 4-15.9 | 9.7 | 120 |
| 3/4 | 20 | 203 | 19 | 99 | 42.9 | 1.6 | 69.9 | 4-15.9 | 10.4 | 120 |
| 1 | 25 | 203 | 25 | 108 | 50.8 | 1.6 | 79.3 | 4-15.9 | 11.2 | 120 |
| 1-1/4 | 32 | 203 | 32 | 117 | 63.5 | 1.6 | 88.9 | 4-15.9 | 12.7 | 130 |
| 1-1/2 | 40 | 203 | 38 | 127 | 73.2 | 1.6 | 98.6 | 4-15.9 | 14.2 | 130 |
| 2 | 50 | 203 | 49 | 152 | 91.9 | 1.6 | 120.7 | 4-19.1 | 15.8 | 150 |
| 2 1/2 | 65 | 216 | 62 | 178 | 104.6 | 1.6 | 139.7 | 4-19.1 | 17.5 | 180 |
| 3 | 80 | 241 | 74 | 191 | 127 | 1.6 | 152.4 | 4-19.1 | 19.1 | 200 |
| 4 | 100 | 292 | 100 | 229 | 157.2 | 1.6 | 190.5 | 8-19.1 | 23.9 | 240 |
| 6 | 150 | 406 | 150 | 279 | 215.9 | 1.6 | 241.3 | 8-22.2 | 25.4 | 370 |
| 8 | 200 | 495 | 201 | 343 | 269.7 | 1.6 | 298.5 | 8-22.2 | 28.4 | 480 |
| 10 | 250 | 622 | 252 | 406 | 323.9 | 1.6 | 362 | 12-25.4 | 30.2 | 520 |
| 12 | 300 | 699 | 303 | 483 | 381 | 1.6 | 431.8 | 12-25.4 | 31.8 | 580 |
| 14 | 350 | 787 | 334 | 533 | 412.8 | 1.6 | 476.2 | 12-28.6 | 35.1 | 620 |
| 16 | 400 | 864 | 385 | 597 | 469.9 | 1.6 | 539.8 | 16-28.6 | 36.6 | 750 |
| 18 | 450 | 978 | 436 | 635 | 533.4 | 1.6 | 577.9 | 16-31.8 | 39.6 | 780 |
| 20 | 500 | 978 | 487 | 699 | 584.2 | 1.6 | 635 | 20-31.8 | 42.9 | - |
| 24 | 600 | 1295 | 589 | 813 | 692.2 | 1.6 | 749.3 | 20-34.9 | 47.8 | - |
Other sizes and materials are available on request. For more information on fabricated basket strainers / filters, please contact us.
Applications
- Water and wastewater treatment
- Oil & gas pipelines
- Chemical and petrochemical plants
- Power generation
- Steam systems
- Protection of pumps, valves and meters
