A216 WCB Basket Strainer Ansi 150Lb Flanged Cast Steel Basket Filter Dn100 Simplex Type
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Port Size: | 4in, Dn100 | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Rating: | 150LB | Power: | Manual |
| Material: | Casting Steel A216 WCB | Temperature Of Media: | Normal Temperature |
| Media: | Water, Oil, Gas | Structure: | Bucket, Basket |

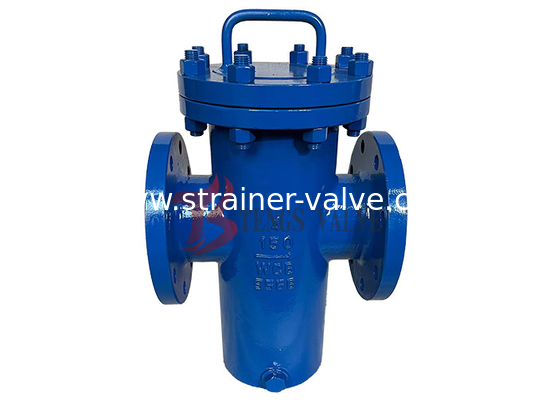

4" DN100 A216 WCB Cast Steel Basket Strainer – ANSI Class 150LB, Flanged RF / FF
Tengs Valve supplies 4" (DN100) A216 WCB cast carbon steel basket strainers, flanged to ANSI Class 150LB. This simplex basket strainer features cast carbon steel WCB body and stainless steel screen available in 304SS or 316SS. End connections include RF (Raised Face) and FF (Flat Face). Tested to API 598. Suitable for water, liquid and general industrial service.
Basket Strainer Specifications
- Size: 4" (DN100)
- Pressure Rating: ANSI Class 150LB, CL150, 150#
- Suitable Medium: Water, Liquid
- Body Material: Cast Carbon Steel A216 WCB
- Screen Material: Stainless Steel (304SS, 316SS)
- Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
- End Connection: RF (Raised Face), FF (Flat Face)
- Test Standard: API 598
- Body Structure: Simplex Type
Material List for Basket Strainer
| No. | Part Name | Material |
|---|---|---|
| 01 | Body | WCB/WPB, CF8/304SS, CF3/304L, CF8M/316SS, CF3M/316L |
| 02 | Screen | 304SS, 316SS, 304LSS, 316LSS |
| 03 | Gasket | Graphite + Stainless Steel (304SS, 316SS) |
| 04 | Cover | A105, A182-F304, A182-F304L, A182-F316, A182-F316L |
| 05 | Bolt | A193 B7, A193 B8, A193 B8M |
| 06 | Nut | A194 2H, A194 8, A194 8M |
| 07 | Drain Plug | A193 B7, A193 B8, A193 B8M |
Dimensions for Basket Strainer Class 150LBS (mm)
| NPS (in) | DN (mm) | L | B | D | G | f | K | Z-Ød | C | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 203 | 13 | 89 | 35.1 | 1.6 | 60.3 | 4-15.9 | 9.7 | 120 |
| 3/4 | 20 | 203 | 19 | 99 | 42.9 | 1.6 | 69.9 | 4-15.9 | 10.4 | 120 |
| 1 | 25 | 203 | 25 | 108 | 50.8 | 1.6 | 79.3 | 4-15.9 | 11.2 | 120 |
| 1-1/4 | 32 | 203 | 32 | 117 | 63.5 | 1.6 | 88.9 | 4-15.9 | 12.7 | 130 |
| 1-1/2 | 40 | 203 | 38 | 127 | 73.2 | 1.6 | 98.6 | 4-15.9 | 14.2 | 130 |
| 2 | 50 | 203 | 49 | 152 | 91.9 | 1.6 | 120.7 | 4-19.1 | 15.8 | 150 |
| 2 1/2 | 65 | 216 | 62 | 178 | 104.6 | 1.6 | 139.7 | 4-19.1 | 17.5 | 180 |
| 3 | 80 | 241 | 74 | 191 | 127 | 1.6 | 152.4 | 4-19.1 | 19.1 | 200 |
| 4 | 100 | 292 | 100 | 229 | 157.2 | 1.6 | 190.5 | 8-19.1 | 23.9 | 240 |
| 6 | 150 | 406 | 150 | 279 | 215.9 | 1.6 | 241.3 | 8-22.2 | 25.4 | 370 |
| 8 | 200 | 495 | 201 | 343 | 269.7 | 1.6 | 298.5 | 8-22.2 | 28.4 | 480 |
| 10 | 250 | 622 | 252 | 406 | 323.9 | 1.6 | 362 | 12-25.4 | 30.2 | 520 |
| 12 | 300 | 699 | 303 | 483 | 381 | 1.6 | 431.8 | 12-25.4 | 31.8 | 580 |
| 14 | 350 | 787 | 334 | 533 | 412.8 | 1.6 | 476.2 | 12-28.6 | 35.1 | 620 |
| 16 | 400 | 864 | 385 | 597 | 469.9 | 1.6 | 539.8 | 16-28.6 | 36.6 | 750 |
| 18 | 450 | 978 | 436 | 635 | 533.4 | 1.6 | 577.9 | 16-31.8 | 39.6 | 780 |
| 20 | 500 | 978 | 487 | 699 | 584.2 | 1.6 | 635 | 20-31.8 | 42.9 | - |
| 24 | 600 | 1295 | 589 | 813 | 692.2 | 1.6 | 749.3 | 20-34.9 | 47.8 | - |
Other sizes and materials are available on request. For more information on basket strainers, please contact us.
