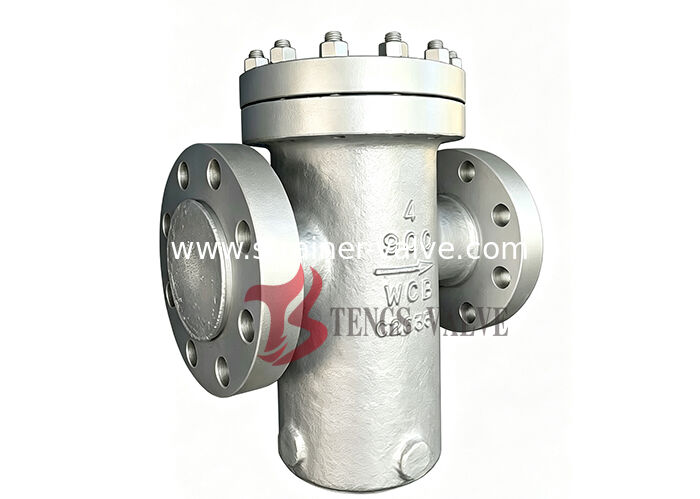

ANSI 900LB Flanged RF Basket Strainer – A216-WCB Body, SS316 Screen, Bolted Cover

Tengs Valve supplies ANSI Class 900LB flanged RF basket strainers with A216-WCB carbon steel body, SS316 stainless steel screen and bolted cover. This high pressure simplex basket strainer is designed for oil, gas, petrochemical and power generation pipelines where Class 900 pressure rating is required. The RF flanged connection and bolted cover allow quick screen removal for cleaning and maintenance without disconnecting the pipeline. Sizes range from 2" to 24" (DN50–DN600). Suitable for water, gas, oil and steam service. Other sizes and materials are available on request.

ANSI 900LB Basket Strainer Specifications

• Product Type: Basket Strainer, Simplex Basket Strainer
• Size Range: 2"–24" (DN50–DN600)
• Pressure Rating: ANSI Class 900LB, 900#
• Body Material: Carbon Steel A216-WCB
• Screen Material: Stainless Steel SS316
• Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
• End Connection: Flanged RF (Raised Face)
• Cover Type: Bolted Cover
• Suitable Medium: Water, Gas, Oil, Steam
• Customization: Other sizes and materials available on request

Main Parts & Material List

Typical Flange Dimensions for Class 900 (mm)

Typical flange dimensions are shown for reference only. Face-to-face (L) dimensions and final flange data should be confirmed with us before ordering.

Face-to-face (L) dimensions and full dimensional drawings are available on request. Please confirm with us before ordering.

Why Choose an ANSI 900LB Basket Strainer?

Class 900 pipelines operate at higher pressure than Class 150, 300 or 600 systems, so the strainer body, cover and bolting must be designed accordingly. This ANSI 900LB basket strainer uses A216-WCB carbon steel body and cover, A193 B7 / A194 2H bolting, and SS316 screen for reliable filtration under high pressure. The bolted cover design allows the screen to be removed for cleaning without cutting or disconnecting the main pipeline, reducing maintenance downtime. For Class 900 service, RF flanges are standard; RTJ can be supplied on request for higher pressure sealing requirements. Typical applications include high pressure oil and gas transmission lines, petrochemical process lines and power plant high pressure systems.

Applications

• High pressure oil & gas transmission pipelines
• Petrochemical and refinery process lines
• Power plant high pressure systems
• High pressure steam lines
• Water injection systems
• Protection of pumps, valves and meters

Other sizes, materials and mesh sizes are available on request. For more information on ANSI 900LB basket strainers, please contact us.
