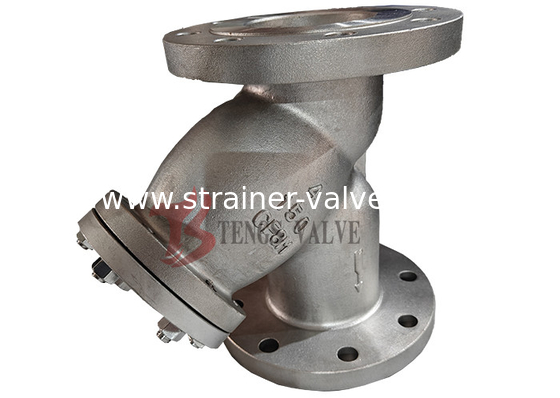

ANSI 150LB A351 CF8M Stainless Steel Y Type Strainer – 4" DN100, Flanged, for Seawater

Tengs Valve supplies ANSI 150LB CF8M stainless steel Y type strainers for seawater and corrosive media. This 4" (DN100) Y strainer features cast stainless steel CF8M (SS316) body, flanged RF/FF ends, and stainless steel screen. Designed to ASME B16.34 and tested to API 598. NACE MR0175 compliant. Other sizes and materials are available on request.

Stainless Steel CF8M Y Type Strainer Specifications

• Size: 4" (DN100)
• Pressure Rating: ANSI Class 150, 150#
• Suitable Medium: Water, Seawater and other corrosive media
• Body Material: Cast Stainless Steel CF8M (SS316)
• Screen Material: Stainless Steel (316LSS, 316SS)
• Mesh Size: 10, 20, 40, 60, 100 mesh or equivalent
• End Connection: Flanged FF / RF
• NACE MR0175: Yes
• Other Sizes & Materials: Available on request

Y Pattern Strainer Standards

• Design & Manufacture: ASME B16.34
• Inspection & Test: API 598
• End Flange Dimension: ANSI B16.5
• BW End Dimension: ASME B16.25
• Face to Face: ASME B16.10
• Pressure-Temperature Rating: ASME B16.34

Y Strainer Main Parts & Material List

Y Type Strainer Dimensions: Class 150 (mm)

Other sizes and materials are available on request.

Applications

• Seawater and desalination systems
• Water treatment and supply
• Oil & gas pipelines
• Chemical and petrochemical plants
• Power generation
• Protection of pumps, valves and meters
