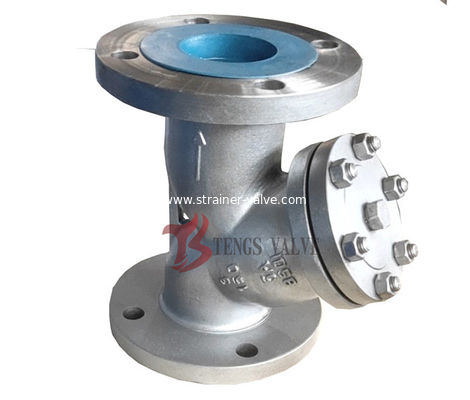

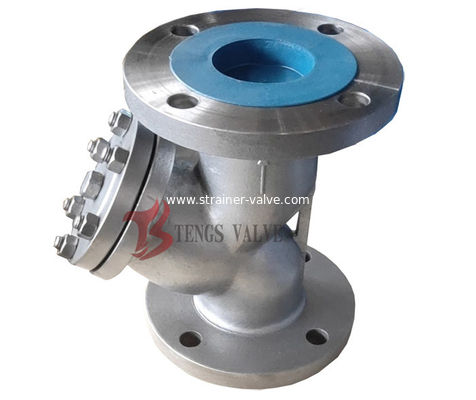

Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers

Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers

Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers
Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers

Large Image :  Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs, OEM
Certification: ISO, CE
Model Number: Y Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: CNF, CIF, FOB
Packaging Details: Plywood Case
Delivery Time: 4 Weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets/month
Detailed Product Description
Body Material: A890-5A, A995-5A Screen: Stainless Steel 2205, 2507
Mesh: Stainless Steel Perforated Hole Size: 1mm, 2mm, 3mm, 4mm, 5mm
Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh Cover Type: Bolted Cover, Bolted Bonnet

Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers Supplier and Exporter



Specification of Stainless Steel 5A Y Pattern Strainer:

1. Strainer Sizes: 1/2inch - 24inch

2. Pressure rating: ANSI CL150LB, 150#

3. Suitable Medium: Water, Sea Water etc.

4. Body Material: Super Stainless Steel  A890-5A, A995-5A

5. Screen: Stainless Steel (316SS, Duplex Stainless Steel)

6. Mesh size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh,200mesh,400mesh etc.

7. End Connection: Flanged FF, RF



Y Pattern Strainer Standards:

Design and Manufacture: ASME B16.34

Inspection and Test: API 598

End Flange Dimension: ANSI B16.5

BW End Dimension: ASME B16.25

Face to Face:ASME B16.10

Pressure-temperature rating: ASME B16.34



Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers 0

Y Pattern Strainer Main Part and Material List:



No. Part name Material
1 Body A351-CF8M A351-CF3M A890-4A A890-5A
2 Screen 304SS,316SS,304LSS,316LSS, DSS
3 Gasket Graphite+ stainless steel(304SS, 316SS)
4 Cover A182-F316 A182-F316L A182-F51 A182-F55
5 Bolt A193 B8M A193 B8M
6 Nut A194 8M A194 8M
7 Drain Plug A193 B8M A193 B8M







 Cast Steel Super Duplex Stainless Steel Y Strainer SAF2507 UNS32750 150LB Wye Type 5A Strainers 1

Y Pattern Strainer Dimension: Class150



NPS

In

DN

mm

L B D G f K Z-Ød C A Q
RF BW
1/2 15 108 - 13 89 35.1 1.6 60.3 4-15.9 9.7 -
3/4 20 117 - 19 99 42.9 1.6 69.9 4-15.9 10.4 -
1 25 127 127 25 108 50.8 1.6 79.3 4-15.9 11.2 35 As per client’s requirement
1-1/4 32 140 140 32 117 63.5 1.6 88.9 4-15.9 12.7 45
1-1/2 40 165 165 38 127 73.2 1.6 98.6 4-15.9 14.2 52
2 50 203 203 49 152 91.9 1.6 120.7 4-19.1 15.8 63
2 1/2 65 216 216 62 178 104.6 1.6 139.7 4-19.1 17.5 75
3 80 241 241 74 191 127 1.6 152.4 4-19.1 19.1 91
4 100 292 292 100 229 157.2 1.6 190.5 8-19.1 23.9 117
6 150 406 356 150 279 215.9 1.6 241.3 8-22.2 25.4 172
8 200 495 495 201 343 269.7 1.6 298.5 8-22.2 28.4 223
10 250 622 622 252 406 323.9 1.6 362 12-25.4 30.2 278
12 300 699 699 303 483 381 1.6 431.8 12-25.4 31.8 329
14 350 787 787 334 533 412.8 1.6 476.2 12-28.6 35.1 362
16 400 864 864 385 597 469.9 1.6 539.8 16-28.6 36.6 413
18 450 978 978 436 635 533.4 1.6 577.9 16-31.8 39.6 464
20 500 978 978 487 699 584.2 1.6 635 20-31.8 42.9 516
24 600 1295 1295 589 813 692.2 1.6 749.3 20-34.9 47.8 619
26 650 1295 1295 633 870 749.3 1.6 806.5 24-34.9 68.3 670
28 700 1448 1448 684 927 800.1 1.6 863.6 28-34.9 71.4 721
30 750 1524 1524 735 984 857.3 1.6 914.4 28-34.9 74.7 772
36 900 1965 1965 874 1168 1022.4 1.6 1085.9 32-41.3 90.4 927
