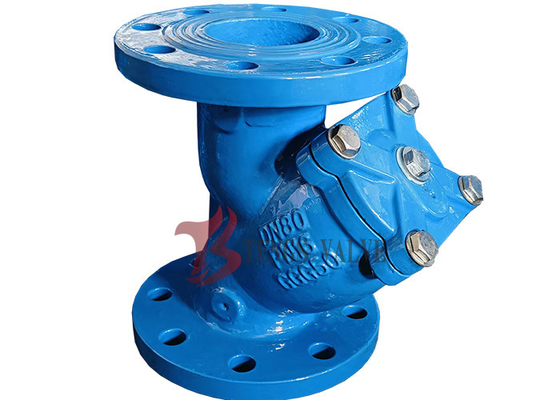

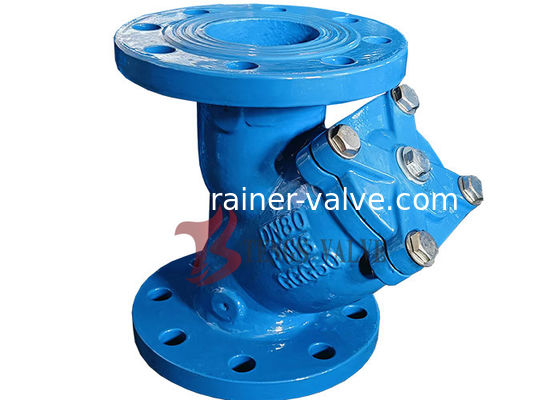

Ductile Iron GGG50 Y Type Strainer, SS304 Mesh, BS EN1092 Flanged DI Y Filter, Pn16
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standards: | DIN, BS | Bonnet Type: | Bolted Bonnet / Bolted Cover |
|---|---|---|---|
| Body Materials: | Ductile Iron, GGG50 | Drain Plug: | Npt |
| Screen Material: | Stainless Steel, SS304, SS316 | Pressure: | PN10, PN16 |
| Body Type: | Y Type | Perforated Hole: | 2mm, 3mm, 5mm Etc. |
| Ends Type: | Flanged RF, FF | Media: | Water, Waste Water |
Ductile Iron Y Type Strainer, GGG50, Pn10, Pn16, Din Standard Flanged DI Y Strainers, Y Filter, Epoxy Coating Blue Color, Bolted Cover.
Ductile Iron Y Type Strainer Specification:
1. Sizes: Dn50- Dn600
2. Pressure Rating: Din PN6, PN10, PN16, PN20
3. Suitable Medium: Water, Waste Water etc.
4. Body Material: GGG50, GGG40, Ductile iron A395
5. Screen: Stainless Steel (304SS, 316SS)
6. Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh etc
7. End Connection: RF / FF
Material list for DUCTILE IRON Y STRAINER:
| NO. | Part | Material | German Standard |
| 1 | Body | Ductile iron | GGG50 |
| 2 | Body gasket | Graphite, PTFE | Graphite, PTFE |
| 3 | Cover | Ductile iron | GGG50 |
| 4 | Bolt | Steel | RST 37-2 |
| 5 | Plug | Stainless steel | SS304 |
| 6 | Screen | Stainless steel | SS304 |
