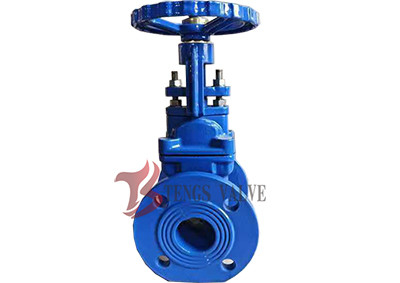

GGG50 Resilient Wedge Gate Valve, Ductile Iron, DI Manual Rising Stem Gate Valves, Flange PN16
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Valve Size: | DN50 - DN600 | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Gate | Pressure: | Pn16, 16Bar |
| Power: | Manual | Material: | Ductile Iron, DI, GGG50 |
| Temperature Of Media: | Normal Temperature | Media: | Waste Water, Water |
GGG50 Resilient Wedge Gate Valve, Ductile Iron, DI Manual Rising Stem Gate Valves, Flange PN16, Handwheel Operated
1. Design & Manufacture: GB or DIN 3202
2. OS&Y, Bolted Bonnet, Resilient Wedge Design
3. Valve Size: DN50 to DN600
4. Pressure Ratings: PN10, PN16
5. End Connections: Flanged, FF, RF
6. Body Materials: Ductile Iron, GGG50, A536, A395, DI
7. Wedge/Disc/Gate: Ductile Iron + Rubber
8. Actuator: Manual, Bare Stem
MATERIAL LIST FOR Pn16 Ductile Iron GATE VALVE:
| Valve Parts | Material |
| Body | Ductile Iron, GGG50 |
| Bonnet | Ductile Iron, GGG50 |
| Gate/Disc | Ductile Iron (GGG50) + EPDM/NBR |
| Stem | Stainless Steel (AISI 416/304) |
| Gland Packing | Graphite/PTFE |
| Handwheel | Ductile Iron or Steel |
| Bolts & Nuts | Carbon Steel, Stainless Steel |
| Gaskets | EPDM Rubber or PTFE |
| Flange Connection | FF, RF |
DIMENSIONS FOR PN16 DI Gate Valve:
| Nominal Size (DN) | Face to Face (mm) |
| 50 | 178 |
| 65 | 190 |
| 80 | 203 |
| 100 | 229 |
| 125 | 254 |
| 150 | 267 |
| 200 | 292 |
| 250 | 330 |
| 300 | 356 |
| 350 | 381 |
| 400 | 406 |
| 450 | 432 |
| 500 | 457 |
| 600 | 508 |
