Forged Y Strainer Carbon Steel & Stainless Steel Bolted Cover Y Filter SW / NPT Ends 800 LB - 1500 LB
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Body: | Carbon Steel, Stainless Steel, Alloy Steel | Screen: | SS304, SS316 |
|---|---|---|---|
| Ends: | SW, NPT | Pressure Rating: | 800LB, 900LB, 1500LB, 2500LB |
| Highlight: | forged steel y strainer,sw y strainer,stainless steel y strainer |
||

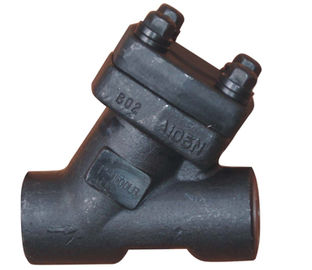

Forged Steel Y Strainer – Carbon Steel & Stainless Steel, SW / NPT Ends, 800–2500 LB
Tengs Valve supplies forged steel Y strainers in carbon steel and stainless steel, with bolted cover and SW / NPT ends. Sizes range from 1/2" to 2", pressure ratings ANSI Class 800, 900, 1500 and 2500 LB (forged type). Body materials include A105, LF2, SS304, SS316, SS304L and SS316L. Suitable for water, gas, oil and steam service. For more information on the forged Y strainer, please contact us.
Forged Steel Y Strainer Specifications
- Size Range: 1/2"–2" (DN15–DN50)
- Pressure Rating: ANSI Class 800, 900, 1500, 2500 LB (forged type)
- Suitable Medium: Water, Gas, Oil, Steam
- Body Material: A105, LF2, SS304, SS316, SS304L, SS316L
- Screen Material: Stainless Steel (304SS, 316SS)
- End Connection: SW (Socket Weld), NPT (Threaded)
- Cover: Bolted Cover
Main Parts & Material List
| No. | Part Name | Material |
|---|---|---|
| 1 | Body / Bonnet | A105(N), A350-LF2, A182-F11, F304(L), F316(L), F51 |
| 2 | Screen | 304SS, 304LSS, 316SS, 316LSS |
| 3 | Gasket | Graphite + 304SS / 316SS |
| 4 | Bolt | B7, L7, B16, B8(M), B8M |
| 5 | Nameplate | Per Standard |
| 6 | Rivet | H62 |
Applications
- High pressure water and steam systems
- Oil & gas pipelines
- Chemical and petrochemical plants
- Power generation
- Protection of pumps, valves and meters
