Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs

Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs

Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs
Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs

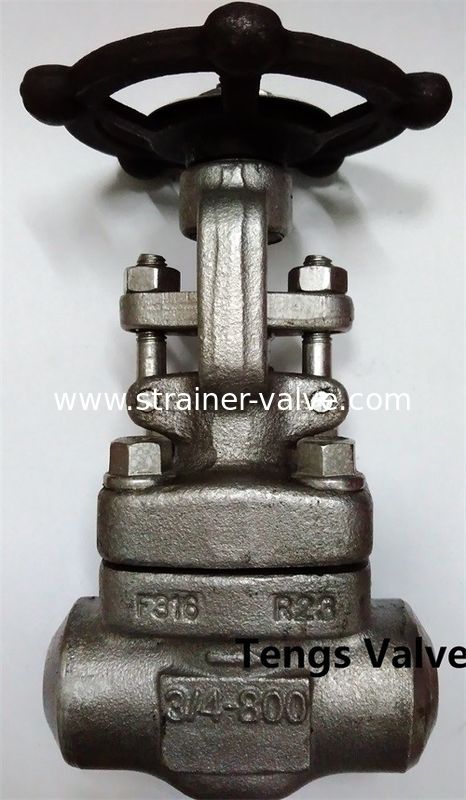

Large Image :  Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO
Model Number: Z61H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Fob, CNF, CIF
Packaging Details: Sea Worthy Packing, Air Worthy Packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Pcs/Month
Detailed Product Description
Port Size: 1/2-2 Inch Standard Or Nonstandard: Standard
Structure: Gate Pressure Rating: 800LB, 900LB, 1500LB
Power: Manual Material: Forged
Temperature Of Media: Medium Temperature Media: Oil, Gas, Water

Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs



1. Design & Manufacture: API 602
2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
3. Full Port / Reduced Port
4. Size Range: 1/2" to 2".
5. Pressure Ratings: ANSI  800Lbs, 900Lbs, 1500Lbs
6. End Connections: Butt Weld, BW Ends
7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent;

8. Various Trim Materials are Available to Suit Different Service Conditions
9. NACE MR 0175

10.Test and Inspection: API598

Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs 0



Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs 1

Forged Steel BW Ends Handwheel Gate Valves 800Lbs-900Lbs-1500Lbs 2
