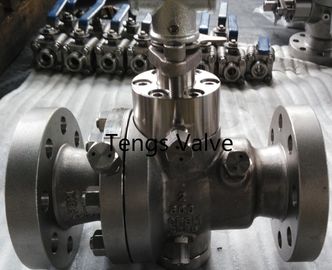

Cast Stainless Steel A351-CF8M Split Body Reduced Bore Flanged TrunnionMounted Ball Valve

Cast Stainless Steel A351-CF8M Split Body Reduced Bore Flanged TrunnionMounted Ball Valve
Cast Stainless Steel A351-CF8M Split Body Reduced Bore Flanged TrunnionMounted Ball Valve

Large Image :  Cast Stainless Steel A351-CF8M Split Body Reduced Bore Flanged TrunnionMounted Ball Valve Get Best Price

Product Details:
Place of Origin: China
Brand Name: Factory or OEM
Certification: ISO, API
Model Number: Q47
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Fob, CNF, CIF
Packaging Details: Sea Worthy packing, Air Worthy packing
Delivery Time: 30 Days
Payment Terms: T/T, L/C
Supply Ability: 200pcs/Month
Contact Now
Detailed Product Description
Port Size: 2-36 INCHI Standard Or Nonstandard: Standard
Structure: Ball Pressure: High Pressure
Power: Manual Material: Stainless Steel
Temperature Of Media: High Temperature Media: Oil, Gas, Water

Cast Stainless Steel A351 CF8M Reduced Bore Flange Ends Trunnion Mounted  Ball Valve



1. Design: API 6D, ANSI B16.34

2. Face to Face: API6D, B16.10

3. Flange End: ANSI, B16.5

4. Size Range: 2” - 36"

5. Pressure Ratings: ANSI Class150, class 300, class 600, class 900, class 1500;

6. Body Materials: CF8, CF8M, CF3, CF3M, Duplex stainless steel (4A, 5A ) etc.

7. Trim: 13CR, 304SS, 316SS, Duplex stainless steel;

8. Full Bore and Reduced Bore

9. Actuator: Lever, Worm Gear;

10. Nace MR-0175 on Requested.

Cast Stainless Steel A351-CF8M Split Body Reduced Bore Flanged TrunnionMounted Ball Valve 0



1 Body 18 Key
2 Bonnet 19 Stem
3 Ball 20 Stem Bearing
4 Anti-fire Washer 21 Thrust Bearing
5 Seat 22 O Ring
6 Seat Retainer 23 O Ring
7 O Ring 24 Anti-fire Gasket
8 Spring 25 Gland
9 O Ring 26 Hexagon Screw
10 Anti-fire Gasket 27 Packing
11 Hexagon Nut 28 Packing Gland
12 Sealant Fitting 29 Lower Stem
13 Check Valve 30 Sliding Gasket
14 Release Valve 31 Lower Cover
15 Anti-static Ball 32 Stud
16 Anti-static Spring 33 Hexagon Nut
17 Stud 34 Drain Plug
