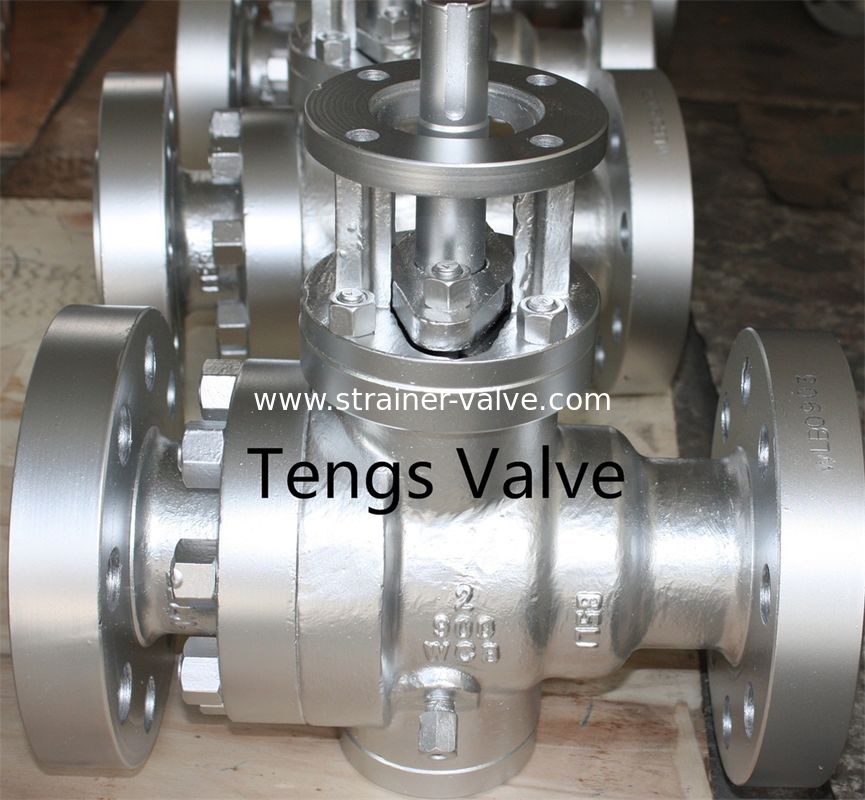

Cast Steel Trunnion Mounted Full Bore or Reduced Bore Ball Valve

1. Design: API 6D, ANSI B16.34
2. Face to Face: API6D, B16.10
3. Flange End: ANSI, B16.5
4. Size Range: 2” - 36"
5. Pressure Ratings: ANSI 150LBS, 300LBS, 600LBS;
6. Body Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A etc.
7. Trim: 13CR, 304SS, 316SS, Duplex Stainless Steel;
8. Full Bore and Reduced Bore
Cast Steel Industrial Trunnion Mounted Full Bore Manual Ball Valve 0

1	Body	18	Key
2	Bonnet	19	Stem
3	Ball	20	Stem Bearing
4	Anti-fire Washer	21	Thrust Bearing
5	Seat	22	O Ring
6	Seat Retainer	23	O Ring
7	O Ring	24	Anti-fire Gasket
8	Spring	25	Gland
9	O Ring	26	Hexagon Screw
10	Anti-fire Gasket	27	Packing
11	Hexagon Nut	28	Packing Gland
12	Sealant Fitting	29	Lower Stem
13	Check Valve	30	Sliding Gasket
14	Release Valve	31	Lower Cover
15	Anti-static Ball	32	Stud
16	Anti-static Spring	33	Hexagon Nut
17	Stud	34	Drain Plug

Main connection dimensions

Class150Lb

DN		2"	2¹/₂"	3"	4"	5"	6"	8"	10"	12"	14"	16"	18"	20"	24"	28"	32"	36"
d1		51	64	76	102	127	152	203	254	305	337	387	438	489	591	686	781	978
L	RF	178	191	203	229	356	394	457	533	610	686	762	864	914	1067	1245	1372	1524
L	BW	216	241	283	305	381	457	521	559	635	762	838	914	991	1143	1346	1524	1727
H		102	114	127	152	184	219	273	360	395	430	470	550	580	700	800	950	1100
Manual	H1	107	125	152	178	300	330	398	495	580	625	670	698	840	1050	1100	1150	1247
	E	-	-	-	-	-	-	116	116	171	171	257	257	257	150	83	83	123
	F	-	-	-	-	-	-	350	350	420	420	400	400	400	410	650	650	735
	W	230	400	400	650	1050	150	600	600	800	800	800	800	800	800	800	800	800
	Wt(Kg)	12	16	22	35	58	74	205	322	460	576	864	1280	1600	3540	4500	5940	7540

Class300Lb

DN		2"	2¹/₂"	3"	4"	5"	6"	8"	10"	12"	14"	16"	18"	20"	24"	28"	32"	36"
d1		51	64	76	102	127	152	203	254	305	337	387	438	489	591	686	781	876
L	RF	216	241	283	305	381	403	502	568	648	762	838	914	991	1143	1346	1524	1727
L	BW	216	241	283	305	381	457	521	559	635	762	838	914	991	1143	1346	1524	1727
H		102	114	127	152	184	219	273	360	395	430	470	550	580	700	800	950	1100
Manual	H1	107	125	152	178	300	330	398	495	580	625	670	698	840	1050	1100	1150	1247
	E	-	-	-	-	-	-	116	116	171	171	257	257	257	150	83	83	123
	F	-	-	-	-	-	-	350	350	420	420	400	400	400	410	650	650	735
	W	230	400	400	650	1050	150	600	600	800	800	800	800	800	800	800	800	800
	Wt(Kg)	15	24	30	55	87	118	255	370	533	640	1030	1524	2100	4200	5300	7860	8684

Class600Lb

DN		2"	2¹/₂"	3"	4"	6"	8"	10"	12"	14"	16"	20"	24"
d1		51	64	76	102	152	203	254	305	337	387	489	591
L	RF	292	330	356	432	559	660	787	838	889	991	1194	1397
L	BW	295	333	359	435	562	664	791	841	892	994	1200	1407
H		114	124	133	159	250	294	395	445	500	530	660	800
Manual	H1	108	155	197	235	300	374	445	512	550	615	810	1010
	E	116	116	116	116	116	171	171	257	257	257	150	83
	F	350	350	350	350	350	420	420	400	400	400	410	650
	W	600	600	600	600	600	800	800	800	800	800	800	800
	Wt(Kg)	35	38	55	102	232	390	710	960	1700	1970	3250	5800
