A216 WCB Ansi 600 LB 14inch Dn350 Cast Steel Carbon Steel Flanged Y Strainer

Name: A216 WCB Ansi 600 LB 14inch Dn350 Cast Steel Carbon Steel Flanged Y Strainer
Brand: Tengs, OEM
SKU: Y Type
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (103 reviews)

Large Image : A216 WCB Ansi 600 LB 14inch Dn350 Cast Steel Carbon Steel Flanged Y Strainer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Tengs, OEM
Certification:	ISO, CE
Model Number:	Y Type

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	CNF, CIF, FOB
Packaging Details:	Plywood Case
Delivery Time:	4 Weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200 Sets/month

Contact Now

Detailed Product Description

Body Material:	Cast Steel A216 WCB	Screen:	304SS, 316SS, SAF 2205, SAF2507
Mesh:	304SS, 316SS	Bonnet Type:	Bolted Bonnet / Bolted Cover
Perforate Hole Size:	1mm, 2mm, 3mm, 4mm, 5mm	End Connection:	RF, RTJ, BW

Ansi 600 LB Cast A216-WCB Bolted Cover Y Type Strainers, Y Type Filter

Details for 14inch Class 600 LB Y Type Strainer

1. Strainer Size: 14inch

2. Strainer Pressure: ANSI 600 LB, 600#

3. Suitable Medium: Water, Gas, Oil, Steam etc.

4. Body Material: Caron Steel: Cast Steel A216 WCB

5. Screen: Stainless steel (304SS, 316SS, 2205, 2507)

6. Mesh Size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh,200mesh,400mesh etc.

7. End Connection: RF / RTJ

Y Strainer Standards:

Design and Manufacture: ASME B16.34

Inspection and Test: API 598

End flange Dimension: ANSI B16.5,ASME B16.47A

BW End Dimension: ASME B16.25

Face to Face:ASME B16.10

Pressure-temperature rating: ASME B16.34

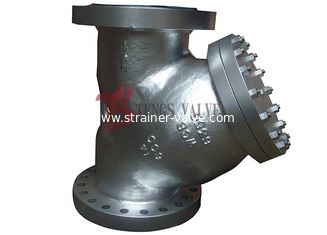

A216 WCB Ansi 600 LB 14inch Dn350 Cast Steel Carbon Steel Flanged Y Strainer 0

Main part and material list for WCB Y Type Strainer:

No.	Parts Name	Material
1	Body	ASTM A216	ASTM A216	ASTM A216	ASTM A216
1	Body	WCB	WCB	WCB	WCB
2	Screen	SS304	SS316	2205	2507
3	Gasket	Graphite+Stainless Steel(304, 304L, 316, 316L), EPDM, PTFE
4	Cover	A105 (N)	A105 (N)	A105 (N)	A105 (N)
5	Cover Bolt	A193B7	A193B7	A193B7	A193B7
6	Cover Nut	A194 2H	A194 2H	A194 2H	A194 2H
7	Drain plug	A193 B7	A193 B7	A193 B7	A193 B7

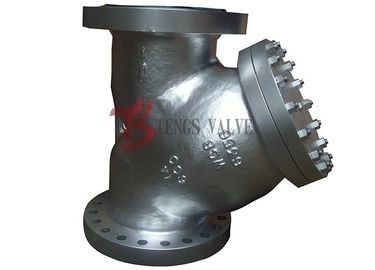

A216 WCB Ansi 600 LB 14inch Dn350 Cast Steel Carbon Steel Flanged Y Strainer 1

Y type strainer dimension: Class 600

NPS In	DN mm	L			B	D	G	f	K	Z-Ød	C	RTJ Dimension				A	Q
NPS In	DN mm	RF	RTJ	BW	B	D	G	f	K	Z-Ød	C	Y	P	E	F	A	Q
2	50	292	295	292	49	165	91.9	6.4	127	8-19.1	25.4	108	82.55	7.92	11.91	63	As per client’s requirement
2 1/2	65	330	333	330	62	191	104.6	6.4	149.2	8-22.2	28.4	127	101.6	7.92	11.91	75
3	80	356	359	356	74	210	127	6.4	168.3	8-22.2	31.8	146	123.82	7.92	11.91	91
4	100	432	435	432	100	273	157.2	6.4	215.9	8-25.4	38.1	175	149.22	7.92	11.91	117
6	150	559	562	559	150	356	215.9	6.4	292.1	12-28.6	47.8	241	211.12	7.92	11.91	172
8	200	660	664	660	201	419	269.7	6.4	349.2	12-31.8	55.6	302	269.88	7.92	11.91	223
10	250	787	791	787	252	508	323.9	6.4	431.8	16-34.9	63.5	356	323.85	7.92	11.91	278
12	300	838	841	838	303	559	381	6.4	489	20-34.9	66.5	413	381	7.92	11.91	329
14	350	889	892	889	334	603	412.8	6.4	527.1	20-38.1	69.9	457	419.1	7.92	11.91	362
16	400	991	994	991	385	686	469.9	6.4	603.2	20-41.3	76.2	508	469.9	7.92	11.91	413
18	450	1092	1095	1092	436	743	533.4	6.4	654.1	20-44.5	82.6	575	533.4	7.92	11.91	464
20	500	1194	1200	1194	487	813	584.2	6.4	723.9	24-44.5	88.9	635	584.2	9.52	13.49	516
24	600	1397	1407	1397	589	940	692.2	6.4	838.2	24-50.8	101.6	749	692.15	11.13	16.66	619
26	650	1448	1461	1448	633	1016	749.3	6.4	914.4	28-50.8	108	809.8	749.3	12.7	19.84	670
28	700	1600	1613	1600	684	1073	800.1	6.4	965.2	28-54	111.3	860.6	800.1	12.7	19.84	721
30	750	1651	1664	1651	735	1130	857.3	6.4	1022.4	28-54	114.3	917.4	857.25	12.7	19.84	772
36	900	2083	2099	2083	874	1314	1022.4	6.4	1193.8	28-66.7	124	1092.2	1022.35	14.27	23.01	927
