Ansi Class 150 LB Cast Carbon Steel WCB Flanged Y Pattern Strainer Large Size to 28inch Dn700

Ansi Class 150 LB Cast Carbon Steel WCB Flanged Y Pattern Strainer Large Size to 28inch Dn700

Ansi Class 150 LB Cast Carbon Steel WCB Flanged Y Pattern Strainer Large Size to 28inch Dn700
Ansi Class 150 LB Cast Carbon Steel WCB Flanged Y Pattern Strainer Large Size to 28inch Dn700

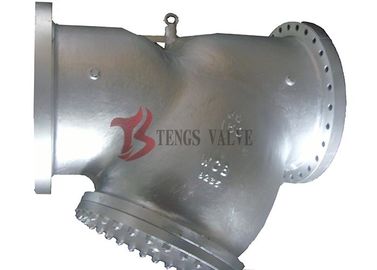

Large Image :  Ansi Class 150 LB Cast Carbon Steel WCB Flanged Y Pattern Strainer Large Size to 28inch Dn700 Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs
Certification: ISO, CE
Model Number: Y Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: CNF, CIF, FOB
Packaging Details: Plywood Case
Delivery Time: 5 Weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 Sets/month
Detailed Product Description
Body Material: Cast Steel, Carbon Steel A216 WCB Screen: 304SS, 316SS, 2205, 2507
Mesh: 304SS, 316SS Perforated Hole Size: 1mm, 2mm, 3mm, 4mm, 5mm
Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh Cover Type: Bolted Cover, Bolted Bonnet

28" DN700 A216 WCB Cast Steel Y Pattern Strainer – ANSI Class 150 LB, Flanged to ASME B16.47A

Tengs Valve supplies 28" (DN700) A216 WCB cast steel Y pattern strainers, flanged to ANSI Class 150 LB and ASME B16.47A. This large size Y strainer features carbon steel WCB body, stainless steel screen available in 304SS, 316SS, 2205 and 2507, and end connections BW, RF or RTJ. Suitable for water, gas, oil and steam service. Other sizes and materials are available on request.

28" Y Pattern Strainer Specifications

  • Size: 28" (DN700)
  • Pressure Rating: ANSI Class 150 LB, 150#
  • Suitable Medium: Water, Gas, Oil, Steam
  • Body Material: Carbon Steel A216 WCB
  • Screen Material: Stainless Steel (304SS, 316SS, 2205, 2507)
  • Mesh Size: 10, 20, 40, 60, 100, 200, 400 mesh or equivalent
  • End Connection: BW, RF, RTJ
  • Flange Standard: ASME B16.47 Series A

Y Strainer Standards

  • Design & Manufacture: ASME B16.34
  • Inspection & Test: API 598
  • End Flange Dimension: ANSI B16.5, ASME B16.47A
  • BW End Dimension: ASME B16.25
  • Face to Face: ASME B16.10
  • Pressure-Temperature Rating: ASME B16.34

28 inch A216 WCB Cast Steel Y Pattern Strainer - ANSI 150 LB

Main Parts & Material List

No. Part Name Material
1 Body ASTM A216 WCB
2 Screen SS304, SS316, 2205, 2507
3 Gasket Graphite + Stainless Steel (304, 304L, 316, 316L), EPDM, PTFE
4 Cover A105 (N)
5 Cover Bolt A193 B7
6 Cover Nut A194 2H
7 Drain Plug A193 B7

Y Pattern Strainer Dimension Drawing - Class 150 LB

Y Pattern Strainer Dimensions: Class 150 LB (mm)

NPS (in) DN (mm) L B D G f K Z-Ød C A Q
RF BW
1/2 15 108 - 13 89 35.1 1.6 60.3 4-15.9 9.7 - As per client's requirement
3/4 20 117 - 19 99 42.9 1.6 69.9 4-15.9 10.4 -
1 25 127 127 25 108 50.8 1.6 79.3 4-15.9 11.2 35
1-1/4 32 140 140 32 117 63.5 1.6 88.9 4-15.9 12.7 45
1-1/2 40 165 165 38 127 73.2 1.6 98.6 4-15.9 14.2 52
2 50 203 203 49 152 91.9 1.6 120.7 4-19.1 15.8 63
2 1/2 65 216 216 62 178 104.6 1.6 139.7 4-19.1 17.5 75
3 80 241 241 74 191 127 1.6 152.4 4-19.1 19.1 91
4 100 292 292 100 229 157.2 1.6 190.5 8-19.1 23.9 117
6 150 406 356 150 279 215.9 1.6 241.3 8-22.2 25.4 172
8 200 495 495 201 343 269.7 1.6 298.5 8-22.2 28.4 223
10 250 622 622 252 406 323.9 1.6 362 12-25.4 30.2 278
12 300 699 699 303 483 381 1.6 431.8 12-25.4 31.8 329
14 350 787 787 334 533 412.8 1.6 476.2 12-28.6 35.1 362
16 400 864 864 385 597 469.9 1.6 539.8 16-28.6 36.6 413
18 450 978 978 436 635 533.4 1.6 577.9 16-31.8 39.6 464
20 500 978 978 487 699 584.2 1.6 635 20-31.8 42.9 516
24 600 1295 1295 589 813 692.2 1.6 749.3 20-34.9 47.8 619
26 650 1295 1295 633 870 749.3 1.6 806.5 24-34.9 68.3 670
28 700 1448 1448 684 927 800.1 1.6 863.6 28-34.9 71.4 721
30 750 1524 1524 735 984 857.3 1.6 914.4 28-34.9 74.7 772
36 900 1965 1965 874 1168 1022.4 1.6 1085.9 32-41.3 90.4 927

Q dimension: As per client's requirement. Other sizes and materials are available on request.

Applications

  • Large diameter water and steam pipelines
  • Oil & gas transmission lines
  • Chemical and petrochemical plants
  • Power generation
  • Protection of pumps, valves and meters
