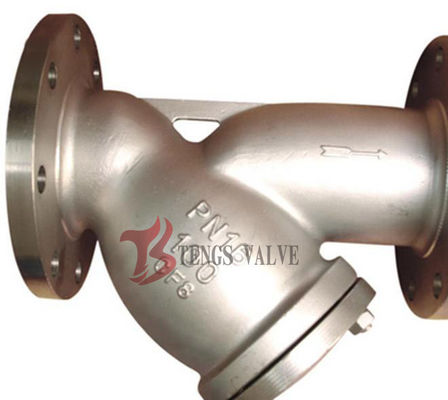

PN16 Y Type Strainer Cast Stainless Steel A351-CF8 1.4308 Flanged Y Filter

Large Image : PN16 Y Type Strainer Cast Stainless Steel A351-CF8 1.4308 Flanged Y Filter Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Factory or OEM
Certification:	ISO, CE
Model Number:	Y Type

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	FOB/CNF/CIF
Packaging Details:	Plywood Case
Delivery Time:	4 Weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	150 Sets /Month

Contact Now

Detailed Product Description

Body Type:	Cast Body	Screen:	Stainless Steel 304 Or 316
Hydro Test:	API 598	Standards:	DIN, GB
Cover Type:	Bolted Cover, B.C	Pressure:	Pn16, 1.6MPa

Stainless Steel SS304 A351-CF8M 1.4308 Y Type Strainer, Y Filter Flanged to PN16 (1.6MPa)

Pn16 Y Type Strainer:

1. Strainer Sizes: DN15mm - DN600mm

2. Strainer Pressure: PN16,1.6MPa, 16Bar

3. Suitable Medium: Water, Gas, Oil, Steam etc.

4. Body Material: A351-CF8, 1.4308

5. Screen: Stainless steel (304SS, 316SS)

6. End Connection: RF, RTJ

7. Type of Bonnet: Bolted Bonnet

7. Drain Plug: Plug or Flanged Drain Plug

PN16 Y Type Strainer Cast Stainless Steel A351-CF8 1.4308 Flanged Y Filter 0

PN16 Y Type Strainer (Y Filter ) Main Part and Material List:

No.	Part name	Material
1	Body	A351-CF8	A351-CF3	A351-CF8M	A351-CF3M
2	Screen	304SS,316SS,304LSS,316LSS
3	Gasket	Graphite+ stainless steel(304SS, 316SS)
4	cover	A182-F304	A182-F304L	A182-F316	A182-F316L
5	Bolt	A193 B8		A193 B8M
6	Nut	A194 8		A194 8M
7	Drain pug	A193 B8		A193 B8M
