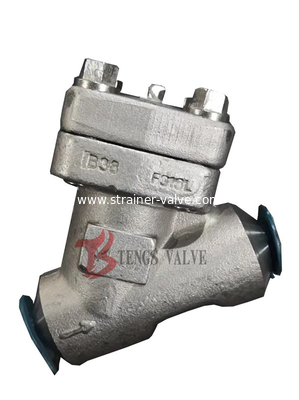

Stainless Y Strainer F316L Butt Welded High Pressure Y Filter 1500LB 0.75 inch Bw Sch. STD

Large Image : Stainless Y Strainer F316L Butt Welded High Pressure Y Filter 1500LB 0.75 inch Bw Sch. STD Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Tengs or OEM
Certification:	ISO, CE
Model Number:	Y Type

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	FOB, CNF, CIF
Packaging Details:	Plywood Case
Delivery Time:	15 Days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 Sets /month

Contact Now

Detailed Product Description

Body:	Stainless 316, 316L	Screen:	316SS, 316LSS
Connection Ends:	BW, Butt Welded	Pressure Rating:	CL800, 800 LB, 800#
Mesh:	Stainless Steel	Drain Plug:	1/4 Inch

F316L Stainless Steel Forged Y Type Strainer – 3/4" DN20, ANSI 1500 LB, Butt Welded

F316L Forged Y Type Strainer - Product Details

Tengs Valve supplies F316L stainless steel forged Y type strainers with butt welded ends. This 3/4" (DN20) Y strainer is rated ANSI 1500 LB and features stainless steel F316/F316L body, stainless steel screen, and drain plug. Suitable for high pressure water, gas, oil and steam service. Other sizes, materials and connection types are available on request.

F316L Forged Y Type Strainer Specifications

Size: 3/4" (DN20)
Pressure Rating: ANSI Class 1500, 1500#
Suitable Medium: Water, Gas, Oil, Steam
Body Material: Stainless Steel F316, F316L, SS316, SS316L
Screen Material: Stainless Steel (304SS, 316SS)
End Connection: BW, Butt Welded
Schedule: Sch. STD, Sch. 40, Sch. 80
Drain Plug: 1/4" (0.25")
Other Sizes & Materials: Available on request

F316L Stainless Steel Forged Y Type Strainer - 3/4 inch 1500LB BW

Forged Y Filter Main Parts & Material List

No.	Part Name	Material
1	Body / Bonnet	A105(N), A350-LF2, A182-F11, F304(L), F316(L), F51
2	Screen	304SS, 304LSS, 316SS, 316LSS
3	Gasket	Graphite + 304SS / 316SS
4	Bolt	B7, L7, B16, B8(M), B8M
5	Nameplate	Per Standard
6	Rivet	H62
