Flanged Wye Strainer Stainless Steel A351 CF3M 2 1/2 Inch Y Strainer 150 LB Cast Steel SS316L

Flanged Wye Strainer Stainless Steel A351 CF3M 2 1/2 Inch Y Strainer 150 LB Cast Steel SS316L

Flanged Wye Strainer Stainless Steel A351 CF3M 2 1/2 Inch Y Strainer 150 LB Cast Steel SS316L
Flanged Wye Strainer Stainless Steel A351 CF3M 2 1/2 Inch Y Strainer 150 LB Cast Steel SS316L

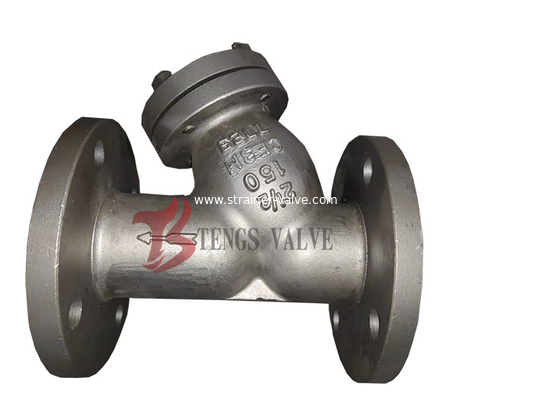

Large Image :  Flanged Wye Strainer Stainless Steel A351 CF3M 2 1/2 Inch Y Strainer 150 LB Cast Steel SS316L Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs, OEM
Certification: ISO, CE
Model Number: Y Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: CNF, CIF, FOB
Packaging Details: Plywood Case
Delivery Time: 4 Weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 Sets/month
Detailed Product Description
Body Material: A351 CF3M / SS316L Screen: 316LSS, 316SS, 2205, 2507
Mesh: 304SS, 316SS Perforated Hole Size: 1mm, 2mm, 3mm, 4mm, 5mm
Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh Cover Type: Bolted Cover, Bolted Bonnet

2 1/2" A351-CF3M Stainless Steel Y Type Strainer – 150 LB, Flanged FF / RF

Tengs Valve supplies 2 1/2" A351-CF3M (SS316L) stainless steel Y type strainers, flanged to ANSI Class 150 LB. Body material is stainless steel A351-CF3M / SS316L. Screen materials include 316LSS, 316SS and duplex stainless steel. End connections include flanged FF and RF. Suitable for seawater, gas, oil and steam service. Other sizes and materials are available on request.

Stainless Steel CF3M Y Pattern Strainer Specifications

  • Size: 2 1/2" (DN65)
  • Pressure Rating: ANSI Class 150 LB, 150#
  • Suitable Medium: Sea Water, Gas, Oil, Steam
  • Body Material: Stainless Steel A351-CF3M, SS316L
  • Screen Material: Stainless Steel (316LSS, 316SS, Duplex Stainless Steel)
  • Mesh Size: 10, 20, 40, 60, 100, 200, 400 mesh or equivalent
  • End Connection: Flanged FF, RF
  • Cover: Bolted Cover

Y Pattern Strainer Standards

  • Design & Manufacture: ASME B16.34
  • Inspection & Test: API 598
  • End Flange Dimension: ANSI B16.5
  • BW End Dimension: ASME B16.25
  • Face to Face: ASME B16.10
  • Pressure-Temperature Rating: ASME B16.34

2 1/2 inch A351-CF3M Stainless Steel Y Type Strainer - 150 LB Flanged

Y (Wye) Pattern Strainer Main Parts & Material List

No. Part Name Material
1 Body A351-CF8, A351-CF3, A351-CF8M, A351-CF3M
2 Screen 304SS, 316SS, 304LSS, 316LSS
3 Gasket Graphite + Stainless Steel (304SS, 316SS)
4 Cover A182-F304, A182-F304L, A182-F316, A182-F316L
5 Bolt A193 B8, A193 B8M
6 Nut A194 8, A194 8M
7 Drain Plug A193 B8, A193 B8M

Y (Wye) Pattern Strainer Dimension Drawing - Class 150

Y (Wye) Pattern Strainer Dimensions: Class 150 (mm)

NPS (in) DN (mm) L B D G f K Z-Ød C A Q
RF BW
1/2 15 108 - 13 89 35.1 1.6 60.3 4-15.9 9.7 - As per client's requirement
3/4 20 117 - 19 99 42.9 1.6 69.9 4-15.9 10.4 -
1 25 127 127 25 108 50.8 1.6 79.3 4-15.9 11.2 35
1-1/4 32 140 140 32 117 63.5 1.6 88.9 4-15.9 12.7 45
1-1/2 40 165 165 38 127 73.2 1.6 98.6 4-15.9 14.2 52
2 50 203 203 49 152 91.9 1.6 120.7 4-19.1 15.8 63
2 1/2 65 216 216 62 178 104.6 1.6 139.7 4-19.1 17.5 75
3 80 241 241 74 191 127 1.6 152.4 4-19.1 19.1 91
4 100 292 292 100 229 157.2 1.6 190.5 8-19.1 23.9 117
6 150 406 356 150 279 215.9 1.6 241.3 8-22.2 25.4 172
8 200 495 495 201 343 269.7 1.6 298.5 8-22.2 28.4 223
10 250 622 622 252 406 323.9 1.6 362 12-25.4 30.2 278
12 300 699 699 303 483 381 1.6 431.8 12-25.4 31.8 329
14 350 787 787 334 533 412.8 1.6 476.2 12-28.6 35.1 362
16 400 864 864 385 597 469.9 1.6 539.8 16-28.6 36.6 413
18 450 978 978 436 635 533.4 1.6 577.9 16-31.8 39.6 464
20 500 978 978 487 699 584.2 1.6 635 20-31.8 42.9 516
24 600 1295 1295 589 813 692.2 1.6 749.3 20-34.9 47.8 619
26 650 1295 1295 633 870 749.3 1.6 806.5 24-34.9 68.3 670
28 700 1448 1448 684 927 800.1 1.6 863.6 28-34.9 71.4 721
30 750 1524 1524 735 984 857.3 1.6 914.4 28-34.9 74.7 772
36 900 1965 1965 874 1168 1022.4 1.6 1085.9 32-41.3 90.4 927

Other sizes and materials are available on request.

Applications

  • Seawater and desalination systems
  • Oil & gas pipelines
  • Chemical and petrochemical plants
  • Power generation
  • Protection of pumps, valves and meters

Contact Details
Yongjia Tengs Valve Co.,Ltd.

Contact Person: Mr. Tony Teng

Tel: +86 17097985455

Send your inquiry directly to us
