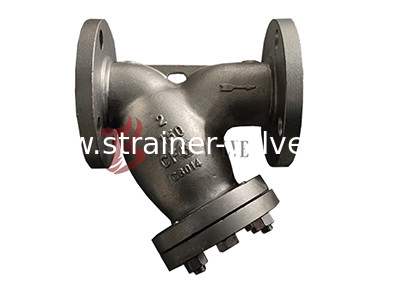

2" A351-CF8 Stainless Steel Y Strainer – Class 150 LB, Flanged FF / RF, for Seawater

Tengs Valve supplies 2" (DN50) A351-CF8 (SS304) stainless steel Y strainers, flanged to ANSI Class 150 LB. Body material is cast stainless steel CF8 / SS304. Screen materials include 304SS and 316SS. End connections include flanged FF and RF. Suitable for seawater, water and other corrosive media. Other sizes and materials are available on request.

Stainless Steel CF8 Y Strainer Specifications

• Size: 2" (DN50)
• Pressure Rating: ANSI Class 150 LB, 150#
• Suitable Medium: Water, Sea Water and other corrosive media
• Body Material: Cast Stainless Steel CF8, SS304
• Screen Material: Stainless Steel (304SS, 316SS)
• Mesh Size: 10, 20, 40, 60, 100 mesh or equivalent
• End Connection: Flanged FF, RF

Y Pattern Strainer Standards

• Design & Manufacture: ASME B16.34
• Inspection & Test: API 598
• End Flange Dimension: ANSI B16.5
• BW End Dimension: ASME B16.25
• Face to Face: ASME B16.10
• Pressure-Temperature Rating: ASME B16.34

Y Strainer Main Parts & Material List

Y Strainer Dimensions: Class 150 (mm)

Other sizes and materials are available on request.

Applications

• Seawater and desalination systems
• Water treatment and supply
• Oil & gas pipelines
• Chemical and petrochemical plants
• Power generation
• Protection of pumps, valves and meters
