Carbon Steel A105N Y Strainer, Forged Steel Y Type Strainers, Dn25, Pn16, BW, Butt Welded Connection
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Body: | Carbon Steel A105N | Screen: | 316SS, 304SS |
|---|---|---|---|
| Connection Ends: | BW, Butt Welded | Pressure Rating: | Pn16 |
| Mesh: | Stainless Steel | Drain Plug: | 1/4 Inch |

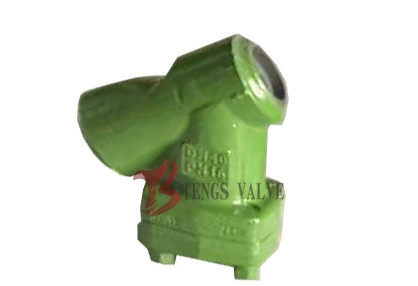

A105N Forged Steel Y Type Strainer – 1" DN25, PN16, Butt Welded
Tengs Valve supplies A105N forged steel Y type strainers with butt welded ends. This 1" (DN25) Y strainer is rated PN16 (1.6 MPa) and features carbon steel A105/A105N body, stainless steel screen, and drain plug. Suitable for water, gas, oil and steam service. Other sizes, materials and connection types are available on request.
A105N Forged Steel Y Type Strainer Specifications
- Size: 1" (DN25)
- Pressure Rating: PN16, 1.6 MPa
- Suitable Medium: Water, Gas, Oil, Steam
- Body Material: Carbon Steel A105, A105N
- Screen Material: Stainless Steel (304SS, 316SS)
- End Connection: BW, Butt Welded
- Schedule: Sch. STD, Sch. 40, Sch. 80 or equivalent
- Drain Plug: 1/4" (0.25")
- Other Sizes & Materials: Available on request
Forged Y Filter Main Parts & Material List
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | A105(N), A350-LF2, A182-F11, F304(L), F316(L), F51 |
| 2 | Bonnet | A105(N), A350-LF2, A182-F11, F304(L), F316(L), F51 |
| 3 | Screen | 304SS, 304LSS, 316SS, 316LSS |
| 4 | Gasket | Graphite + 304SS / 316SS |
| 5 | Bolt | B7, L7, B16, B8(M), B8M |
| 6 | Nameplate | Per Standard |
| 7 | Rivet | H62 |
Applications
- Water and steam systems
- Oil & gas pipelines
- Chemical and petrochemical plants
- Power generation
- Protection of pumps, valves and meters
For more information on the forged Y strainer, please contact us.
