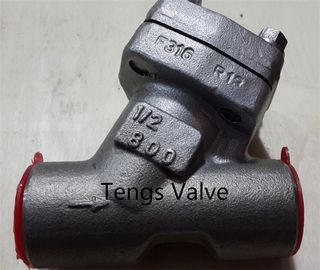

Forged Stainless Steel A182-F316 Y Strainer – SW / NPT Ends, ANSI 800 LB

Tengs Valve supplies A182-F316 forged stainless steel Y strainers with SW or NPT ends, rated ANSI Class 800 LB. Sizes range from 1/2" to 2". Body materials include F316 and F316L. Screen materials include 304SS, 316SS, 316LSS, 2205 and 2507. NACE MR0175 compliant. Suitable for water, gas, oil and steam service. Other sizes and materials are available on request.

Forged Stainless Steel F316 Y Type Strainer Specifications

• Size Range: 1/2"–2" (DN15–DN50)
• Pressure Rating: ANSI Class 800, 800#
• Suitable Medium: Water, Gas, Oil, Steam
• Body Material: F316, F316L (A182-F316 / A182-F316L)
• Screen Material: Stainless Steel (304SS, 316SS, 316LSS, 2205, 2507)
• End Connection: SW (Socket Weld), NPT (Threaded)
• NACE MR0175: Yes

Forged Y Type Strainer 800 LB Dimensions

Applications

• High pressure water and steam systems
• Oil & gas pipelines
• Chemical and petrochemical plants
• Power generation
• Protection of pumps, valves and meters
