Ductile Iron and Cast Iron Y Strainer, Din Flanged Epoxy Coating Blue Color Y Type Strainer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Body: | Cast Iron, Ductile Iron, GGG50 | Screen: | 304SS, 316SS |
|---|---|---|---|
| Standards: | DIN, ANSI | Ends Connection: | Flanged, RF, FF |
| High Light: | ductile iron y strainer,DI y type strainer,GGG40 y type strainer |
||

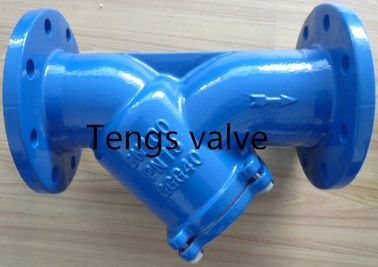

Iron Y Type Strainer, Epoxy Coating Blue Color, Bolted Cover Din Standard Flanged Cast Iron or Ductile Iron Y Strainers
Iron Y Type Strainer Specification:
1. Sizes: 1/2in - 24in
2. Pressure Rating: ANSI 125LB / 150LB, Din PN6, PN10, PN16, PN20
3. Suitable Medium: Water, Steam etc.
4. Body Material: Cast iron A126-B, GG25, GGG50, GGG40, Ductile iron A395
5. Screen: Stainless Steel (304SS, 316SS)
6. Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc
7. End Connection: RF / FF
Material list for CAST IRON or DUCTILE IRON Y STRAINER:
| NO. | Part | Material | German Standard |
| 1 | Body | Cast iron, Ductile iron | GG25, GGG50 |
| 2 | Body gasket | Graphite, PTFE | Graphite, PTFE |
| 3 | Cover | Cast iron, Ductile iron | GG25, GGG50 |
| 4 | Bolt | Steel | RST 37-2 |
| 5 | Plug | Stainless steel | SS304 |
| 6 | Screen | Stainless steel | SS304 |
