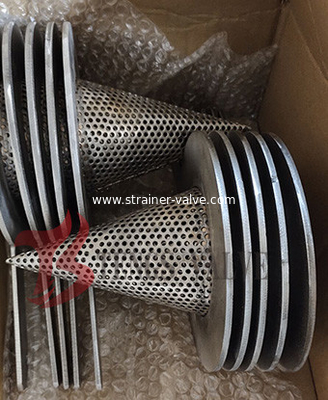

Stainless Steel 316 Temporary Strainer Conical Type Flange to Pn16 For Suction Pump

Stainless Steel 316 Temporary Strainer Conical Type Flange to Pn16 For Suction Pump

Stainless Steel 316 Temporary Strainer Conical Type Flange to Pn16 For Suction Pump
Stainless Steel 316 Temporary Strainer Conical Type Flange to Pn16 For Suction Pump

Large Image :  Stainless Steel 316 Temporary Strainer Conical Type Flange to Pn16 For Suction Pump Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO
Model Number: Conical Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB/CNF/CIF
Packaging Details: Plywood Case, Carton
Delivery Time: 10 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets /month
Detailed Product Description
Body Material: Stainless Steel 316 Perforated Hole: 1mm, 2mm, 3mm, 4mm, 5mm Etc
Mesh: Stainless Steel 316 Mesh Size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh, 200mesh Etc
Pressure: PN16, PN10 Custom Made: Yes

Stainless Steel 316 Temporary Conical Strainer – PN10 / PN16 Flange, for Suction Pump Protection

Tengs Valve supplies stainless steel 316 and 316L temporary conical strainers with DIN PN10 / PN16 flanges, designed for suction pump protection during pipeline commissioning and start-up. The conical strainer is mounted between two flanges (wafer type / sandwich type) and removed after commissioning, protecting pumps, valves and instruments from weld slag, pipe scale and construction debris. Sizes range from DN25 to DN900. Pressure ratings include PN10 and PN16. Screen material is SS316 or SS316L, with mesh options in SS304, SS316 or SS316L. Perforated hole sizes include 1mm, 2mm, 3mm and 5mm. Mesh sizes range from 20 to 400. Suitable for DIN PN10 / PN16 flanges.

SS316 Temporary Conical Strainer Specifications

  • Product Type: Temporary Conical Strainer, Start-up Strainer
  • Size Range: DN25–DN900 (1"–36")
  • Pressure Rating: DIN PN10, PN16
  • Screen Material: Stainless Steel 316, 316L
  • Perforated Hole Size: 1mm, 2mm, 3mm, 5mm or equivalent
  • Mesh Material: SS304, SS316, SS316L
  • Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
  • Mounting: Between two flanges (Wafer / Sandwich Type)
  • Flange Standard: DIN PN10 / PN16
  • Customization: Customized sizes and materials available

Temporary conical strainers are mounted between two flanges (wafer type / sandwich type) as temporary start-up protection for pipelines and plants.

SS316 Temporary Conical Strainer - PN10/PN16 Flange for Suction Pump Protection

Features of Inline Temporary Conical Strainer

  • Adequate Strength of Elements and Housing – designed to withstand pipeline flushing and pressure testing conditions
  • Lower Cost – cost-effective option for one-time commissioning protection
  • Less Weight – simple conical design reduces overall weight and installation effort
  • Large Filtration Area – gross filtration area is minimum 3 to 5 times the inlet cross-section area, reducing pressure drop and extending cleaning intervals
  • DIN PN10 / PN16 Flange Compatibility – designed to fit standard DIN flanges for European and international projects

Why Choose an SS316 Temporary Conical Strainer for Suction Pump Protection?

During pipeline commissioning and pump start-up, weld slag, pipe scale and construction debris can damage pump impellers, seals and bearings. The SS316 temporary conical strainer is installed on the suction side of the pump, between two DIN PN10 / PN16 flanges, to capture these particles before they reach the pump. SS316 and SS316L offer better corrosion resistance than SS304, making them suitable for water, oil, gas and mildly corrosive media. The conical shape provides a larger filtration area than a flat screen, which means lower pressure drop and longer intervals between cleanings. After commissioning, the strainer is removed and the pipeline continues with its permanent filtration system.

Applications

  • Suction pump start-up protection
  • Pipeline commissioning and flushing
  • Pressure testing of new pipelines
  • Cooling water and seawater systems
  • Oil & gas pipeline start-up (DIN projects)
  • Power plant commissioning
  • Chemical and petrochemical plant start-up

Other sizes, materials and mesh sizes are available on request. For more information on SS316 temporary conical strainers, please contact us.
