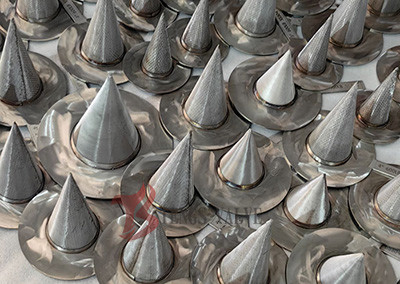

Temporary Conical Strainer – SS304 Start-up Strainer for Pump Suction Protection, ANSI 150–600LB

Tengs Valve supplies temporary conical strainers in SS304 stainless steel, designed for pump suction start-up protection during pipeline commissioning and flushing. The conical strainer is mounted between two flanges (wafer type / sandwich type) and removed after commissioning, making it a cost-effective solution for protecting pumps, valves and instruments from weld slag, pipe scale and construction debris. Sizes range from 1" to 36" (DN25–DN900). Pressure ratings include ANSI Class 150LB, 300LB and 600LB. Perforated hole sizes include 1mm, 2mm, 3mm and 5mm. Mesh sizes range from 20 to 400. Suitable for ANSI B16.5 and ASME B16.47 flanges. Customized or tailor-made sizes available.

Temporary Conical Strainer Specifications

• Product Type: Temporary Conical Strainer, Start-up Strainer
• Size Range: 1"–36" (DN25–DN900)
• Pressure Rating: ANSI Class 150LB, 300LB, 600LB
• Screen Material: Stainless Steel 304 (SS304) or other stainless steel on request
• Perforated Hole Size: 1mm, 2mm, 3mm, 5mm or equivalent
• Mesh Material: SS304 or other stainless steel
• Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
• Mounting: Between two flanges (Wafer / Sandwich Type)
• Flange Standard: ANSI B16.5, ASME B16.47
• Customization: Customized or tailor-made available

Temporary conical strainers are mounted between two flanges (wafer type / sandwich type) as temporary start-up protection for pipelines and plants.

Features of Inline Temporary Conical Strainer

• Adequate Strength of Elements and Housing – designed to withstand pipeline flushing and pressure testing conditions
• Lower Cost – compared with permanent strainers, temporary strainers are a cost-effective option for one-time commissioning protection
• Less Weight – simple conical design reduces overall weight and installation effort
• Large Filtration Area – gross filtration area is minimum 3 to 5 times the inlet cross-section area, reducing pressure drop and extending cleaning intervals

Why Choose a Temporary Conical Strainer?

Temporary conical strainers are installed during pipeline commissioning, flushing and pressure testing, then removed after start-up. They protect downstream equipment such as pumps, valves, meters and heat exchangers from construction debris, weld slag and pipe scale that would otherwise cause damage during the first hours of operation. The conical shape provides a larger filtration surface than a flat screen, which means lower pressure drop and longer intervals between cleanings. Because it is mounted between two existing flanges as a wafer/sandwich element, it requires no additional piping modification and is easy to install and remove. SS304 construction provides good corrosion resistance for water, oil and gas commissioning service.

Applications

• Pump suction start-up protection
• Pipeline commissioning and flushing
• Pressure testing of new pipelines
• Cooling water and seawater systems
• Oil & gas pipeline start-up
• Power plant commissioning
• Chemical and petrochemical plant start-up

Other sizes, materials and mesh sizes are available on request. For more information on temporary conical strainers, please contact us.
