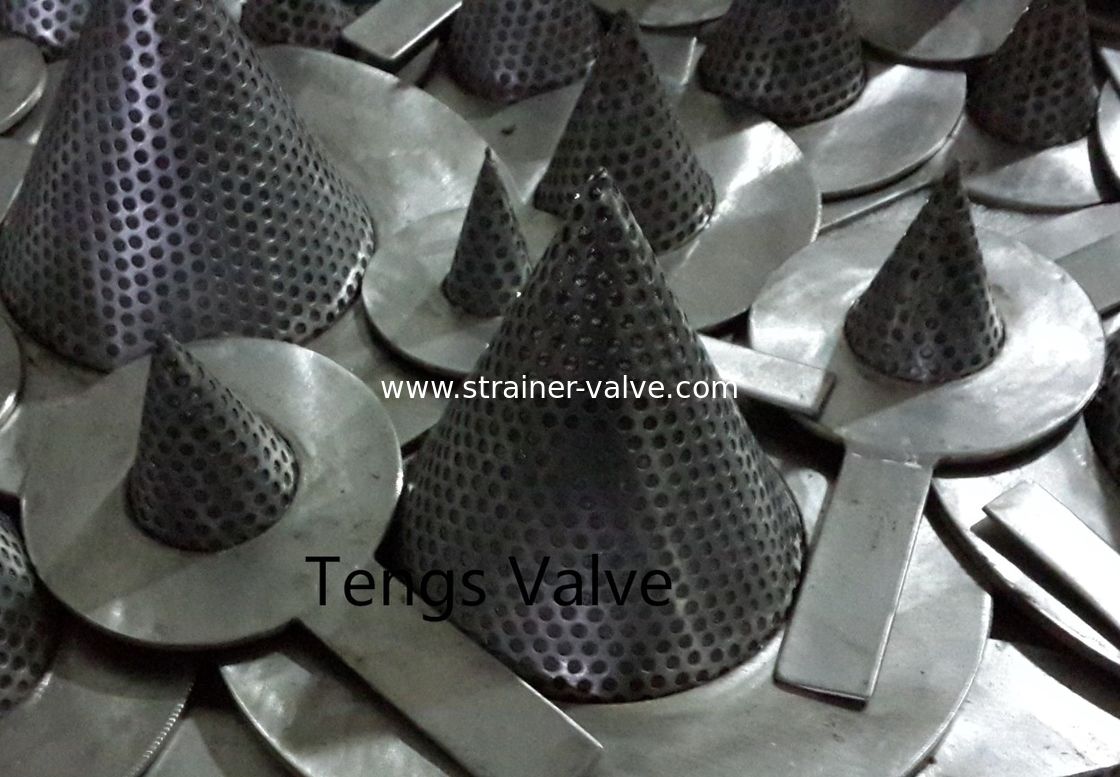

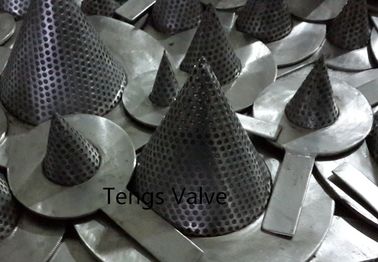

Start Up Temporary Pipeline Strainer – SS304 / SS316, 1" to 36", ANSI 150–1500LB

Tengs Valve supplies start up temporary pipeline strainers in SS304 and SS316 stainless steel, designed for pipeline commissioning, flushing and start-up protection. The strainer is mounted between two flanges (wafer type / sandwich type) and removed after commissioning. It captures weld slag, pipe scale and construction debris before they reach pumps, valves, meters and heat exchangers, protecting downstream equipment during the critical start-up phase. Sizes range from 1" to 36". Pressure ratings include ANSI Class 150LB to 1500LB. Perforated hole sizes include 1mm, 2mm, 3mm and 5mm. Mesh sizes range from 20 to 400. Customized sizes and materials are available on request.

Start Up Temporary Pipeline Strainer Specifications

• Product Type: Start Up Temporary Pipeline Strainer
• Size Range: 1"–36" (DN25–DN900)
• Pressure Rating: ANSI Class 150LB, 300LB, 600LB, 900LB, 1500LB
• Screen Material: SS304, SS316
• Perforated Hole Size: 1mm, 2mm, 3mm, 5mm or equivalent
• Mesh Material: SS304, SS316
• Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
• Mounting: Between two flanges (Wafer / Sandwich Type)
• Customization: Customized sizes and materials available

Features of Start Up Temporary Pipeline Strainer

• Start-up Protection: Captures weld slag, pipe scale and construction debris during pipeline commissioning and first start-up.
• Easy Installation: Mounted between two existing flanges as a wafer/sandwich element, no additional piping modification required.
• Low Pressure Drop: Large open area design minimizes flow restriction during commissioning.
• Cost-Effective: Temporary protection during start-up, removed after commissioning to reduce operating cost.
• SS304 / SS316 Materials: Good corrosion resistance for water, oil, gas and steam service.
• Wide Pressure Coverage: Suitable for ANSI Class 150LB to 1500LB pipeline systems.

Why Choose a Start Up Temporary Pipeline Strainer?

During pipeline commissioning and first start-up, weld slag, pipe scale, sand and construction debris can travel through the line and damage pumps, valves, meters and heat exchangers. A start up temporary pipeline strainer is installed between two flanges to capture these particles before they reach critical equipment. Unlike permanent strainers, temporary strainers are designed for short-term commissioning service and are removed after the pipeline is clean. This reduces long-term operating cost while providing reliable protection during the most critical phase of pipeline operation. SS304 and SS316 construction covers most water, oil, gas and steam commissioning applications. For larger pipelines up to 36" and higher pressure ratings up to ANSI 1500LB, customized dimensions are available on request.

Applications

• Pipeline commissioning and flushing
• First start-up protection for new pipelines
• Pressure testing of new pipeline systems
• Oil & gas transmission line start-up
• Power plant commissioning
• Chemical and petrochemical plant start-up
• Water and cooling water system commissioning

Other sizes, materials and mesh sizes are available on request. For more information on start up temporary pipeline strainers, please contact us.
