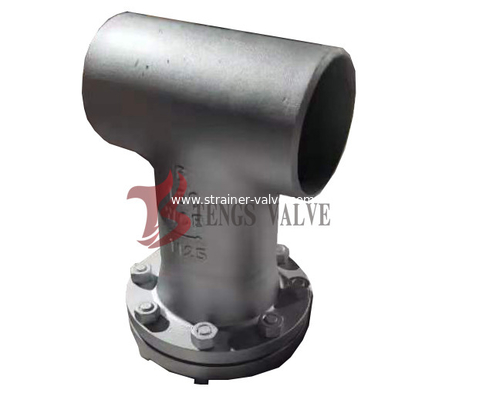

Tee Type Strainer Fabricated Carbon Steel A234 WPB BW Ends Tee Strainers 150LB

Name: Tee Type Strainer Fabricated Carbon Steel A234 WPB BW Ends Tee Strainers 150LB
Brand: Tengs or OEM
SKU: Tee type
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (110 reviews)

Large Image : Tee Type Strainer Fabricated Carbon Steel A234 WPB BW Ends Tee Strainers 150LB Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Tengs or OEM
Certification:	ISO
Model Number:	Tee type

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	FOB / CNF
Packaging Details:	Export Standard Case
Delivery Time:	4 Weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200 Sets/month

Contact Now

Detailed Product Description

Strainer Body:	Tee: Carbon Steel, WPB	Screen:	304SS, 316SS
Body Flange:	WN: CS, A105N,	Ends Type:	BW, Butt Welding

Fabricated Industrial Carbon Steel A234 WPB Ansi BW Tee Type Strainer Class 150LB

Tee Type Strainers, Tee Strainer Specifactions:

1. Sizes: 2" - 48", DN50 - DN1200

2. Pressure Rating: ANSI 150LB, CL150, 150LB

3. Suitable Medium: Water, Gas, Oil, Steam etc.

4. Body Type: Tee Type

5. Tee Body Material: Carbon Steel, A234-WPB, A106

6. Body Flange: WN Flange

7. Screen: Stainless Steel (304SS, 316SS)

8. Mesh Size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc

9. End Connection: BW, Butt Welding

10. Nace Mr0175

Tee Type Strainer Fabricated Carbon Steel A234 WPB BW Ends Tee Strainers 150LB 0

TEE STRAINER MATERIAL LIST:

No.	Parts name	Material
01	Tee	A234-WPB	304SS	304LSS	316SS	316LSS
02	Flange	A105	A182-F304	A182-F304L	A182-F316	A182-F316L
03	Cover	A105	A182-F304	A182-F304L	A182-F316	A182-F316L
04	Bolt	A193 B7	A193 B8	A193 B8	A193 B8M	A193 B8M
05	Nut	A194 2H	A194 8	A194 8	A194 8M	A194 8M
06	Gasket	Graphite+304SS/316SS/304LSS/316LSS
07	Screen	304SS/316SS
08	Drain plug	A105	A182-F304	A182-F304L	A182-F316	A182-F316L

Tee Type Strainer Fabricated Carbon Steel A234 WPB BW Ends Tee Strainers 150LB 1

DIMENSIONS FOR FABRICTED TEE TYPE STRAINER ANSI CLASS 150LBS

NPS In	DN mm	L		Flange	D	G	f	K	Z-Ød	C	A	Q
NPS In	DN mm	RF	BW	Flange	D	G	f	K	Z-Ød	C	A	Q
2	50	254	117	ANSI/ASME B16.5	152	91.9	1.6	120.7	4-19.1	15.8	60.3	As per client’s requirement
2 1/2	65	292	152		178	104.6	1.6	139.7	4-19.1	17.5	73
3	80	312	172		191	127	1.6	152.4	4-19.1	19.1	88.9
4	100	362	209		229	157.2	1.6	190.5	8-19.1	23.9	114.3
6	150	463	285		279	215.9	1.6	241.3	8-22.2	25.4	168.3
8	200	559	354		343	269.7	1.6	298.5	8-22.2	28.4	219.1
10	250	635	432		406	323.9	1.6	362	12-25.4	30.2	273.1
12	300	737	508		483	381	1.6	431.8	12-25.4	31.8	323.9
14	350	813	559		533	412.8	1.6	476.2	12-28.6	35.1	355.6
16	400	864	609		597	469.9	1.6	539.8	16-28.6	36.6	406.4
18	450	965	686		635	533.4	1.6	577.9	16-31.8	39.6	457.2
20	500	1051	762		699	584.2	1.6	635	20-31.8	42.9	508
22	550	1136	838		749	641	1.6	692	20-34.9	46	558.8
24	600	1168	861		813	692.2	1.6	749.3	20-34.9	47.8	609.6
26	650	1232	970	ANSI/ASME B16..47 SERIES- A	870	749.3	1.6	806.5	24-34.9	68.3	660.4
28	700	1293	1041		927	800.1	1.6	863.6	28-34.9	71.4	711.2
30	750	1391	1117		984	857.3	1.6	914.4	28-34.9	74.7	762
32	800	1483	1194		1060	914.4	1.6	977.9	28-41.3	80.8	812.8
34	850	1567	1270		1111	965.2	1.6	1028.7	32-41.3	82.6	863.6
36	900	1661	1346		1168	1022.4	1.6	1085.9	32-41.3	90.4	914.4
38	950	1737	1422		1238	1073.2	1.6	1149.4	32-41.3	87.4	965.2
40	1000	1826	1498		1289	1124	1.6	1200.2	36-41.3	90.4	1016
42	1020	1867	1524		1346	1193.8	1.6	1257.3	36-41.3	96.8	1066.8
44	1100	1982	1625		1403	1244.6	1.6	1314.5	40-41.3	101.6	1117.6
46	1150	2074	1701		1454	1295.4	1.6	1365.3	40-41.3	103.1	1168.4
48	1200	2162	1778		1511	1358.9	1.6	1422.4	44-41.3	108	1219.2
26	650	1169	970	ANSI/ASME B16..47 SERIES- B	786	711.2	1.6	744.5	36-22	41.1	660.4
28	700	1232	1041		837	762	1.6	795.3	40-22	44.5	711.2
30	750	1318	1117		887	812.8	1.6	846.1	44-22	44.5	762
32	800	1410	1194		941	863.8	1.6	900.2	48-22	46	812.8
34	850	1491	1270		1005	920.8	1.6	957.3	40-26	49.3	863.6
36	900	1581	1346		1057	971.6	1.6	1009.7	44-26	52.3	914.4
38	950	1671	1422		1124	1022.4	1.6	1069.8	40-28.6	53.8	965.2
40	1000	1756	1498		1175	1079.5	1.6	1120.6	44-28.6	55.6	1016
42	1020	1791	1524		1226	1130.3	1.6	1171.4	48-28.6	58.7	1066.8
44	1100	1889	1625		1276	1181.1	1.6	1222.2	52-28.6	60.5	1117.6
46	1150	1991	1701		1341	1234.9	1.6	1284.2	40-31.8	62.0	1168.4
48	1200	2078	1778		1392	1289.1	1.6	1335.0	44-31.8	65.0	1219.2
