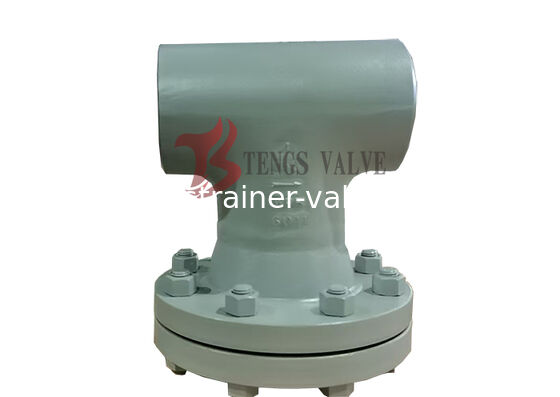

A234 WPB Tee Strainer, Carbon Steel BW Ends T Type Strainers, WN Flange 150LB Filter

A234 WPB Tee Strainer, Carbon Steel BW Ends T Type Strainers, WN Flange 150LB Filter

A234 WPB Tee Strainer, Carbon Steel BW Ends T Type Strainers, WN Flange 150LB Filter
A234 WPB Tee Strainer, Carbon Steel BW Ends T Type Strainers, WN Flange 150LB Filter

Large Image :  A234 WPB Tee Strainer, Carbon Steel BW Ends T Type Strainers, WN Flange 150LB Filter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Tengs or OEM
Certification: ISO
Model Number: Tee type, T type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: EXW, FOB, CNF, CIF
Packaging Details: Export Standard Case
Delivery Time: 4 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets/month
Detailed Product Description
Strainer Body: Tee: Carbon Steel, WPB Screen: 304SS, 316SS
Body Flange: WN: CS, A105N, Ends Type: BW, Butt Welding

Welded A234 WPB Tee Type Strainer – WN Flange Cover, Class 150LB, Large Size up to 48"

Tengs Valve supplies welded A234 WPB carbon steel Tee type strainers with a WN flange cover on the branch, rated ANSI Class 150LB. The WN flange cover design allows the screen to be removed for cleaning or replacement in minutes, without cutting the main pipeline. This makes it ideal for pipelines that require frequent screen inspection. Sizes range from 2" to 48" (DN50–DN1200). Body material is carbon steel A234-WPB or A106. Screen materials include 304SS and 316SS. End connection is BW (Butt Welding). NACE MR0175 available for sour service.

WN Flange Cover Tee Strainer Specifications

  • Size Range: 2"–48" (DN50–DN1200)
  • Pressure Rating: ANSI Class 150LB, CL150
  • Suitable Medium: Water, Gas, Oil, Steam
  • Body Type: Tee Type, Welded Fabricated Body
  • Tee Body Material: Carbon Steel, A234-WPB, A106
  • Body Flange: WN Flange (Welding Neck, for branch cover)
  • Screen Material: Stainless Steel (304SS, 316SS)
  • Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
  • End Connection: BW, Butt Welding
  • Sour Service: NACE MR0175

Welded A234 WPB Tee Type Strainer - WN Flange Cover for Quick Screen Access

Tee Strainer Material List

No. Part Name Material
01 Tee A234-WPB, 304SS, 304LSS, 316SS, 316LSS
02 Flange A105, A182-F304, A182-F304L, A182-F316, A182-F316L
03 Cover A105, A182-F304, A182-F304L, A182-F316, A182-F316L
04 Bolt A193 B7, A193 B8, A193 B8M
05 Nut A194 2H, A194 8, A194 8M
06 Gasket Graphite + 304SS / 316SS / 304LSS / 316LSS
07 Screen 304SS / 316SS
08 Drain Plug A105, A182-F304, A182-F304L, A182-F316, A182-F316L

Tee Type Strainer with WN Flange Cover - Structural Sketch

Dimensions for Fabricated Tee Type Strainer ANSI Class 150LBS (mm)

ANSI/ASME B16.5 (NPS 2"–24")

NPS (in) DN (mm) L (RF) L (BW) D G f K Z-Ød C A
2 50 254 117 152 91.9 1.6 120.7 4-19.1 15.8 60.3
2 1/2 65 292 152 178 104.6 1.6 139.7 4-19.1 17.5 73
3 80 312 172 191 127 1.6 152.4 4-19.1 19.1 88.9
4 100 362 209 229 157.2 1.6 190.5 8-19.1 23.9 114.3
6 150 463 285 279 215.9 1.6 241.3 8-22.2 25.4 168.3
8 200 559 354 343 269.7 1.6 298.5 8-22.2 28.4 219.1
10 250 635 432 406 323.9 1.6 362 12-25.4 30.2 273.1
12 300 737 508 483 381 1.6 431.8 12-25.4 31.8 323.9
14 350 813 559 533 412.8 1.6 476.2 12-28.6 35.1 355.6
16 400 864 609 597 469.9 1.6 539.8 16-28.6 36.6 406.4
18 450 965 686 635 533.4 1.6 577.9 16-31.8 39.6 457.2
20 500 1051 762 699 584.2 1.6 635 20-31.8 42.9 508
22 550 1136 838 749 641 1.6 692 20-34.9 46 558.8
24 600 1168 861 813 692.2 1.6 749.3 20-34.9 47.8 609.6

ANSI/ASME B16.47 Series A (NPS 26"–48")

NPS (in) DN (mm) L (RF) L (BW) D G f K Z-Ød C A
26 650 1232 970 870 749.3 1.6 806.5 24-34.9 68.3 660.4
28 700 1293 1041 927 800.1 1.6 863.6 28-34.9 71.4 711.2
30 750 1391 1117 984 857.3 1.6 914.4 28-34.9 74.7 762
32 800 1483 1194 1060 914.4 1.6 977.9 28-41.3 80.8 812.8
34 850 1567 1270 1111 965.2 1.6 1028.7 32-41.3 82.6 863.6
36 900 1661 1346 1168 1022.4 1.6 1085.9 32-41.3 90.4 914.4
38 950 1737 1422 1238 1073.2 1.6 1149.4 32-41.3 87.4 965.2
40 1000 1826 1498 1289 1124 1.6 1200.2 36-41.3 90.4 1016
42 1020 1867 1524 1346 1193.8 1.6 1257.3 36-41.3 96.8 1066.8
44 1100 1982 1625 1403 1244.6 1.6 1314.5 40-41.3 101.6 1117.6
46 1150 2074 1701 1454 1295.4 1.6 1365.3 40-41.3 103.1 1168.4
48 1200 2162 1778 1511 1358.9 1.6 1422.4 44-41.3 108 1219.2

ANSI/ASME B16.47 Series B (NPS 26"–48")

NPS (in) DN (mm) L (RF) L (BW) D G f K Z-Ød C A
26 650 1169 970 786 711.2 1.6 744.5 36-22 41.1 660.4
28 700 1232 1041 837 762 1.6 795.3 40-22 44.5 711.2
30 750 1318 1117 887 812.8 1.6 846.1 44-22 44.5 762
32 800 1410 1194 941 863.8 1.6 900.2 48-22 46 812.8
34 850 1491 1270 1005 920.8 1.6 957.3 40-26 49.3 863.6
36 900 1581 1346 1057 971.6 1.6 1009.7 44-26 52.3 914.4
38 950 1671 1422 1124 1022.4 1.6 1069.8 40-28.6 53.8 965.2
40 1000 1756 1498 1175 1079.5 1.6 1120.6 44-28.6 55.6 1016
42 1020 1791 1524 1226 1130.3 1.6 1171.4 48-28.6 58.7 1066.8
44 1100 1889 1625 1276 1181.1 1.6 1222.2 52-28.6 60.5 1117.6
46 1150 1991 1701 1341 1234.9 1.6 1284.2 40-31.8 62.0 1168.4
48 1200 2078 1778 1392 1289.1 1.6 1335.0 44-31.8 65.0 1219.2

Q dimension: as per client's requirement. Other sizes and materials are available on request.

Why Choose a Tee Strainer with WN Flange Cover?

The WN flange cover on the branch allows the screen to be removed and cleaned in minutes, without cutting the main pipeline or breaking the BW end connections. This design is ideal for pipelines where the screen needs frequent inspection, such as crude oil transmission lines or cooling water systems. Compared with a fully welded branch, the WN flange cover provides easier maintenance access while keeping the main line free of flange joints. NACE MR0175 compliance is available for sour service.

Applications

  • Crude oil transmission lines requiring frequent screen inspection
  • Cooling water and seawater systems
  • Sour service pipelines (NACE MR0175)
  • Chemical and petrochemical plants
  • Power generation steam lines
  • Protection of pumps, valves and meters

Other sizes and materials are available on request. For our BW end Tee type strainers without flange cover, please see the separate product page. For more information, please contact us.
