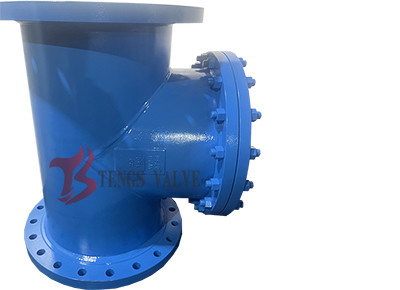

Flanged T Type Strainer – A234 WPB Carbon Steel, ANSI 150LB, Welded Fabricated T Strainer

Tengs Valve supplies flanged T type strainers in fabricated A234 WPB carbon steel, designed for pipeline filtration in water, gas, oil and steam systems. The T-shaped body allows the filter screen to sit directly in the flow path, capturing debris while maintaining low pressure drop. Sizes range from 2" to 36" (DN50–DN900). Pressure rating is ANSI Class 150LB. Body materials include A234-WPB, A106 and carbon steel. Screen materials include 304SS and 316SS. End connections include RF and RTJ.

T Type Strainer Specifications

• Size Range: 2"–36" (DN50–DN900)
• Pressure Rating: ANSI Class 150LB
• Suitable Medium: Water, Gas, Oil, Steam
• Body Material: A234-WPB, A106, Carbon Steel
• Screen Material: Stainless Steel (304SS, 316SS)
• Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh or equivalent
• End Connection: RF, RTJ
• Body Structure: Fabricated / Welded Type

Material List for T Type Strainers

Main Dimensions: Class 150LBS (mm)

Why Choose This A234 WPB T Type Strainer?

The fabricated T type strainer features a welded carbon steel body with a T-shaped branch that houses the screen. Compared with Y type strainers, the T design allows easier access to the screen for cleaning and replacement without removing the entire unit from the pipeline. The A234 WPB material is widely used in piping systems and offers good weldability and cost-effectiveness for general industrial service.

Applications

• Water and wastewater pipelines
• Oil & gas transmission lines
• Chemical and petrochemical plants
• Power generation
• Steam systems
• Protection of pumps, valves and meters

Other sizes and materials are available on request. For more information on T type strainers, please contact us.
